Datasensing MSD/00-1K Sensors
Datasensing
$158.49
The Datasensing MSD/00-1K Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. With a nominal sensing distance of 32 meters, these sensors are ideal for various industrial applications. They feature a robust nickel-plated brass housing with a PC plug, ensuring durability and resistance to harsh environments. The M18 diameter and axial optic position make them versatile for different setups.
These sensors offer selectable NPN/PNP output types with NO/NC functionality, providing flexibility in integration. They operate efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 25mA and a load current capacity of ?100mA. The sensors are equipped with red LED indicators for status output, ensuring easy monitoring.
Engineered for reliability, the MSD/00-1K sensors have a repeat accuracy of 5% and a thermal drift of Sr ?10% Sr. They are protected against short circuits, overvoltage, and impulsive overvoltage, with a high resistance to external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight.
The sensors are designed to withstand shocks and vibrations as per IEC standards, with an IP67 mechanical protection rating, making them suitable for demanding environments. They come with M12 plug connections at a 90° angle and are supplied with M18 x 1 nuts for easy installation. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are CE and cURus approved, ensuring compliance with international safety standards.
- Nominal sensing distance:
- 32m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial

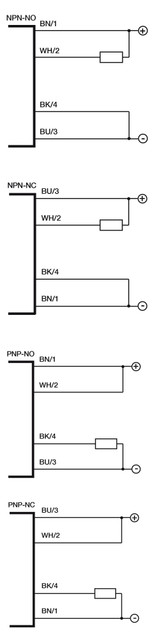

- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 30Hz
- Response time:
- 16,66ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1 /L =78,6mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
