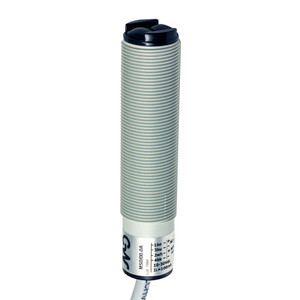

Datasensing MVC/C0-0C Sensors
Datasensing
$115.69
The Datasensing MVC/C0-0C Sensors are high-performance photoelectric sensors designed for reliable retroreflective detection. With a nominal sensing distance of 4.5 meters, these sensors are equipped with a robust plastic cable measuring 2 meters in length and feature a 90° cable exit for versatile installation. The sensors operate on a wide voltage range of 20 to 253 VAC at 50-60Hz, ensuring compatibility with various power systems.
Engineered with precision, the sensors boast a repeat accuracy of 5% and maintain a thermal drift of Sr at ?10%Sr, ensuring consistent performance in diverse environments. The optic position is axial, and the output type is TRIAC NC, providing a normally closed output function. With a switching frequency of 25Hz and a response time of 20ms, these sensors are ideal for fast-paced applications.
The housing is constructed from durable PBT/PC materials, offering IP67 mechanical protection against dust and water ingress. The active head is made from PMMA, and the sensors are supplied with M18 x 1 nuts for secure mounting. The sensors are designed to withstand operating temperatures ranging from -25°C to +70°C without freezing, and they comply with EMC compatibility standards EN 60947-5-2.
Additional features include LED indicators for status output, a time delay before availability of ?200ms, and resistance to external light interference up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. The sensors are CE and cURus approved, ensuring adherence to international safety and quality standards.
- Nominal sensing distance:
- 4,5m
- Thermal drift of Sr:
- ?10%Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- TRIAC NC
- Output Function:
- NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...253VAC/50-60Hz
- No-Load supply current:
- ? 30mARMS
- Load current:
- 5 300mARMS
- Leakage current:
- 6A
- Output voltage drop:
- ?3V@Iload=300mARMS
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Housing Material:
- PBT / PC cable exit 90°
- Connections:
- 2m PVC cable 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- Nuts M18 x 1
- Dimensions:
- M18x1/L=78,6mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
