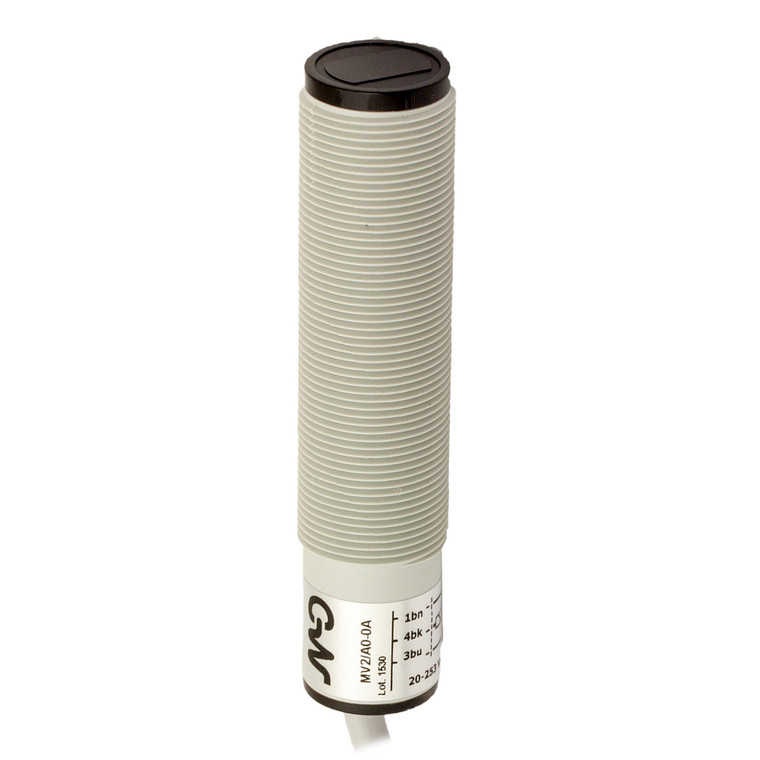

Datasensing MVR/C0-0A Sensors
Datasensing
$101.85
The Datasensing MVR/C0-0A Sensors are advanced photoelectric sensors designed for reliable and precise detection. Featuring a robust M18 receiver with a nominal sensing distance of 16 meters, these sensors are ideal for a wide range of applications. The through-beam models offer a high sensing range, while the retro-reflective models utilize polarized light with a visible beam for enhanced accuracy. With an axial optic position and a durable PBT/PC housing, these sensors ensure long-lasting performance even in challenging environments.
The MVR/C0-0A sensors are equipped with a TRIAC NC output type, providing a low leakage current and high output current, making them suitable for various industrial settings. The sensors operate within a voltage range of 20 to 253VAC and feature a switching frequency of 25Hz, ensuring quick and efficient response times. The IP67 protection degree guarantees complete protection against electrical damage, while the LED indicators provide clear status output.
Designed for ease of installation, the sensors come with a 2-meter PVC cable and M12 plug cable exit in either axial or right-angle shape. The sensors are CE cURus approved and comply with EMC compatibility standards EN 60947-5-2, ensuring they meet high safety and performance standards. With a compact design and a weight of just 100g, the Datasensing MVR/C0-0A Sensors are a reliable choice for any industrial automation system.
- Nominal sensing distance:
- 16m
- Thermal drift of Sr:
- ?10%Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- TRIAC NC
- Output Function:
- NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...253VAC/50-60Hz
- No-Load supply current:
- ? 30mARMS
- Load current:
- 5 300mARMS
- Leakage current:
- 6A
- Output voltage drop:
- ?3V@Iload=300mARMS
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 60° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
