Datasensing NX14SR/XAN-A010 Sensors
Datasensing
$192.50

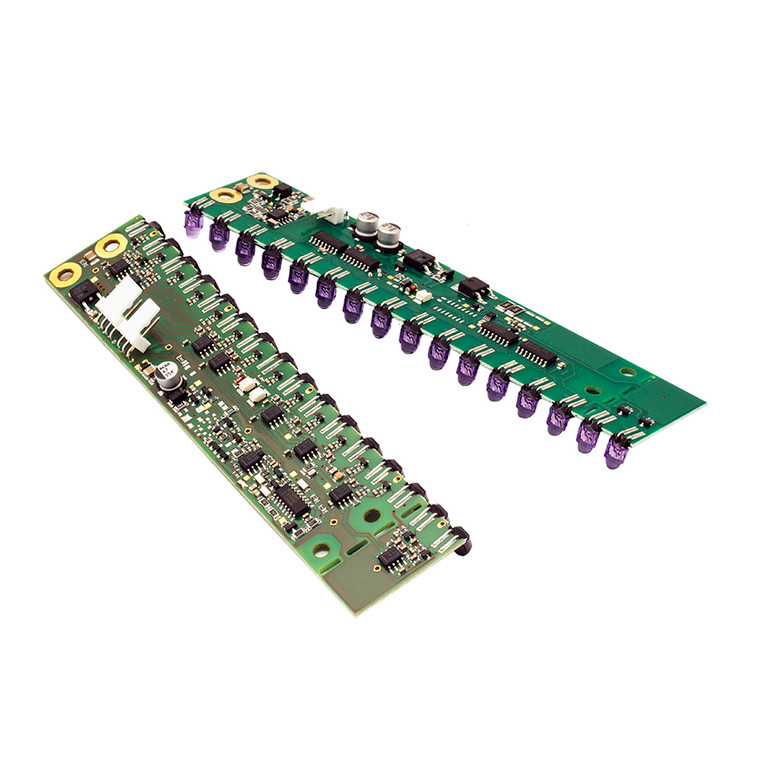

The Datasensing NX14SR/XAN-A010 Sensors offer a comprehensive solution for detecting objects in various applications, including automatic vending machines. This area sensor kit features 14 beams with an axial configuration and sensitivity adjustment, ensuring precise detection of objects with irregular shapes. The sensors operate with a nominal sensing distance ranging from 0.5 to 2 meters and a beam spacing of 10mm, providing a controlled height of 130mm. With a minimum detectable object size of Ø 5mm, these sensors are equipped with crossed beams detection and LED indicators for easy monitoring.
The emitter and receiver function on an NPN output type with a normally open (NO) output function, supporting a switching frequency of 130Hz. The sensors are designed to withstand electrical damages, offering short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. Operating on a voltage range of 10 to 26VDC, the sensors have a no-load supply current of 150mA for the emitter and 25mA for the receiver, with a load current capacity of 100mA.
The compact design, measuring 140 x 36 x 18mm and weighing 104g, includes PCB connectors for easy installation. The sensors are capable of operating in temperatures from 0°C to +55°C, withstanding external light interference up to 1000lux for incandescent light and 1500lux for sunlight. The Datasensing NX14SR/XAN-A010 Sensors are an ideal choice for applications requiring reliable and accurate object detection without housing.
- Nominal sensing distance:
- 0,5 2m
- Beams space:
- 10mm
- controlled height:
- 130mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 14
- Sensitivity adjustment:
- Yes
- Function Principle:
- emitter+receiver
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 130Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 7ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Time delay before availability:
- < 85 ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 140 x 36 x 18mm
- Weight:
- 104g
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Degree of protection:
- Not defined
- Dimensions:
- 140x36x18
- Mechanical Protection:
- Not defined
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
