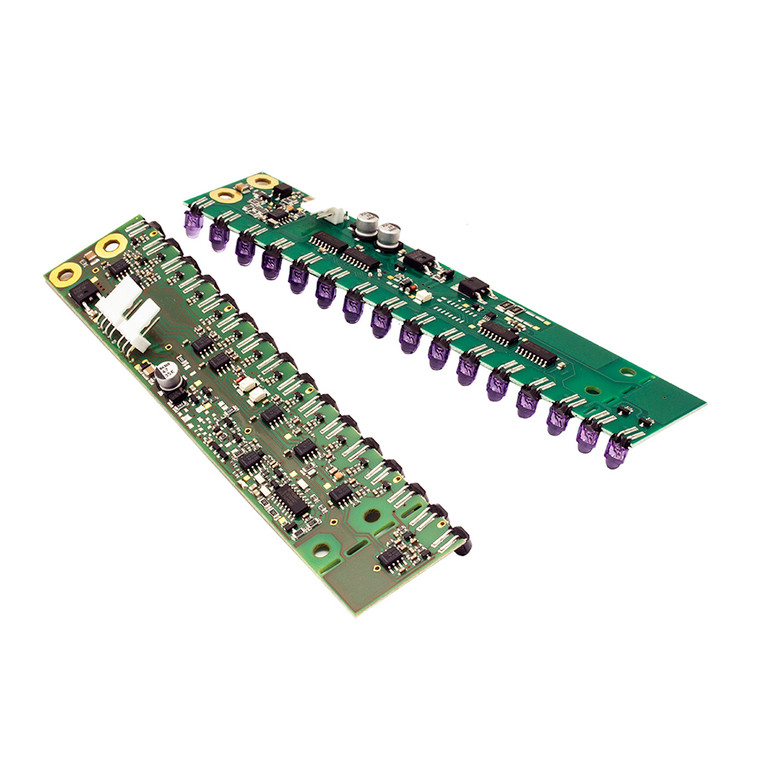

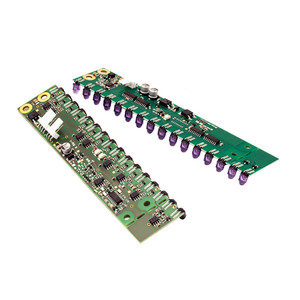

Datasensing NX14SR/XAN-C01020 Sensors
Datasensing
$196.86
The Datasensing NX14SR/XAN-C01020 Sensors are a comprehensive area sensor kit designed for precision and reliability. Featuring 14 beams with a controlled height of 130mm and a beam spacing of 10mm, this sensor kit is ideal for applications requiring accurate detection. The sensors offer a nominal sensing distance ranging from 0.25 to 0.7 meters, with the ability to detect objects as small as 5mm.
Equipped with an NPN NO output function, the sensors operate at a switching frequency of 130Hz. The no-load supply current is 150mA for the emitter and 25mA for the receiver, while the load current is 100mA. The output voltage drop is maintained at ?2V@100mA, with a leakage current of less than 10A at 26V. The sensors are designed to handle a maximum ripple content of 10%.
The kit includes LED indicators for easy monitoring: a yellow LED on the emitter indicates power ON and emission activity, while the receiver features a red LED for signal level and a yellow LED for output state activity. The sensors emit infrared light at 880nm and are resistant to interference from external light sources, withstanding up to 1000lux from incandescent light and 1500lux from sunlight.
Connections are facilitated through PCB connectors, with specific MOLEX connectors for both the emitter and receiver. The compact dimensions of 140x36x18 ensure easy integration into various setups. While mechanical protection is not defined, the robust design ensures reliable performance in diverse environments.
- Nominal sensing distance:
- 0,25 0,7m
- Beams space:
- 10mm
- controlled height:
- 130mm
- minimum detectable object:
- Ø 5mm
- Output Function:
- NO
- Switching frequency:
- 130Hz
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Dimensions:
- 140x36x18
- Mechanical Protection:
- Not defined
