Datasensing NX14SR/XAP-A000 Sensors
Datasensing
$192.50

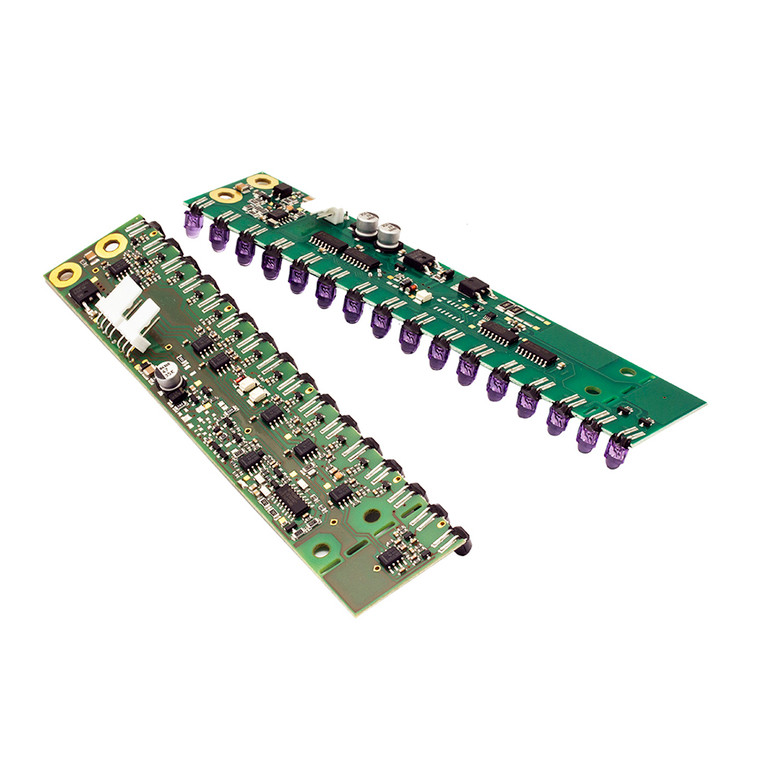

The Datasensing NX14SR/XAP-A000 Sensors offer a comprehensive solution for detecting objects in various applications, including automatic vending machines and environments with irregularly shaped items. This area sensor kit features 14 beams with a controlled height of 130mm and a beam spacing of 10mm, ensuring precise detection with a nominal sensing distance ranging from 0.5 to 2 meters. The sensors are equipped with sensitivity adjustment and operate on a PNP NO output type, providing reliable performance with a switching frequency of 130Hz.
Designed without housing, the sensors incorporate crossed beams detection and LED indicators for easy monitoring. The emitter's yellow LED indicates power and emission activity, while the receiver's red and yellow LEDs display signal level and output state, respectively. The sensors are protected against electrical damages with features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection.
Operating within a voltage range of 10 to 26VDC, the sensors maintain a low no-load supply current and minimal leakage current, ensuring energy efficiency. The compact dimensions of 140 x 36 x 18mm and a weight of 104g make them easy to integrate into various systems. With a response time of 500µs for light/dark transitions and 7ms for dark/light transitions, these sensors deliver quick and accurate detection. Suitable for operating temperatures between 0°C and +55°C, the Datasensing NX14SR/XAP-A000 Sensors are a versatile and reliable choice for your detection needs.
- Nominal sensing distance:
- 0,5 2m
- Beams space:
- 10mm
- controlled height:
- 130mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 14
- Sensitivity adjustment:
- Yes
- Function Principle:
- emitter+receiver
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 130Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 7ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Time delay before availability:
- < 85 ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 140 x 36 x 18mm
- Weight:
- 104g
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
