Datasensing NX14SR/XAP-C000 Sensors
Datasensing
$206.24

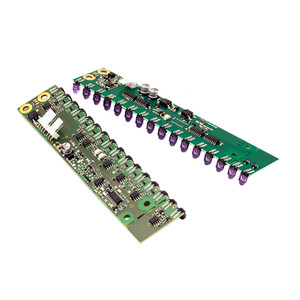

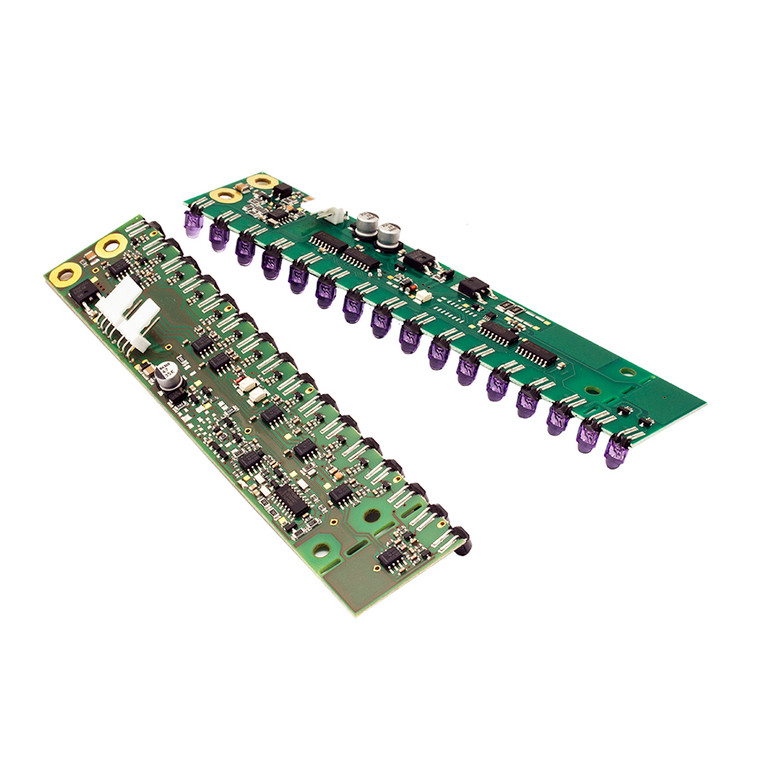

The Datasensing NX14SR/XAP-C000 Sensors offer a comprehensive solution for detecting objects in various applications, including automatic vending machines and irregularly shaped items. This area sensor kit features 14 beams with a controlled height of 130mm and a nominal sensing distance ranging from 0.5 to 2 meters. The sensors are equipped with sensitivity adjustment and a 90° detection angle, ensuring precise and reliable performance.
Key features include LED indicators for easy status monitoring, crossed beams detection for enhanced accuracy, and protection against electrical damages. The sensors operate on a PNP NO output type with a switching frequency of 130Hz, providing quick response times of 500µs for light/dark transitions and 7ms for dark/light transitions. With an operating voltage of 10 to 26VDC and a low no-load supply current, these sensors are energy-efficient and suitable for various environments.
The compact design, measuring 140 x 36 x 18mm and weighing 104g, allows for easy integration without housing. The sensors are equipped with PCB connectors for straightforward installation and feature short-circuit and reverse polarity protection for added safety. Operating within a temperature range of 0°C to +55°C, the Datasensing NX14SR/XAP-C000 Sensors are a reliable choice for demanding applications.
- Nominal sensing distance:
- 0,5 2m
- Beams space:
- 10mm
- controlled height:
- 130mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 14
- Sensitivity adjustment:
- Yes
- Function Principle:
- emitter+receiver
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 130Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 7ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Time delay before availability:
- < 85 ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 140 x 36 x 18mm
- Weight:
- 104g
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Degree of protection:
- Not defined
- Dimensions:
- 140x36x18
- Mechanical Protection:
- Not defined
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
