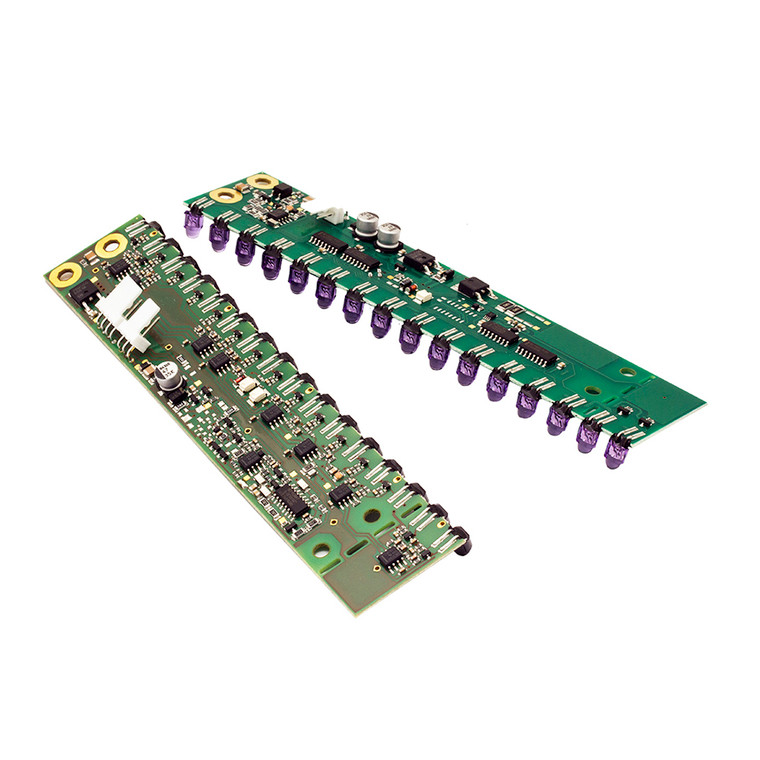

Datasensing NX14SR/XAP-C010 Sensors
Datasensing
$206.70
The Datasensing NX14SR/XAP-C010 Sensors offer a comprehensive solution for detecting objects with precision and reliability. This area sensor kit features 14 beams with a 90° angle and sensitivity adjustment, ensuring accurate detection of goods, even those with irregular shapes, in automatic vending machines. With a nominal sensing distance ranging from 0.5 to 2 meters and a beam spacing of 10mm, it can detect objects as small as Ø 5mm. The kit operates on a PNP NO output type with a switching frequency of 130Hz, providing quick response times for both light/dark and dark/light transitions.
Equipped with LED indicators, the emitter displays a yellow light when powered on and active, while the receiver shows a red light for signal level and a yellow light for output state activity. The sensors are designed to withstand electrical damages with features like short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. Operating within a voltage range of 10 to 26VDC, the sensors maintain a low no-load supply current and minimal leakage current, ensuring efficient performance.
The compact design, measuring 140 x 36 x 18mm and weighing 104g, includes PCB connectors for easy installation. The sensors are capable of operating in temperatures from 0°C to +55°C, making them suitable for various environments. With infrared emission at 880nm, they are resistant to interference from external light sources up to 1500lux. This sensor kit is an ideal choice for applications requiring precise object detection and reliable performance.
- Nominal sensing distance:
- 0,5 2m
- Beams space:
- 10mm
- controlled height:
- 130mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 14
- Sensitivity adjustment:
- Yes
- Function Principle:
- emitter+receiver
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 130Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 7ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Time delay before availability:
- < 85 ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 140 x 36 x 18mm
- Weight:
- 104g
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Degree of protection:
- Not defined
- Dimensions:
- 140x36x18
- Mechanical Protection:
- Not defined
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
