Datasensing NX14SR/XAP-C01020 Sensors
Datasensing
$206.70

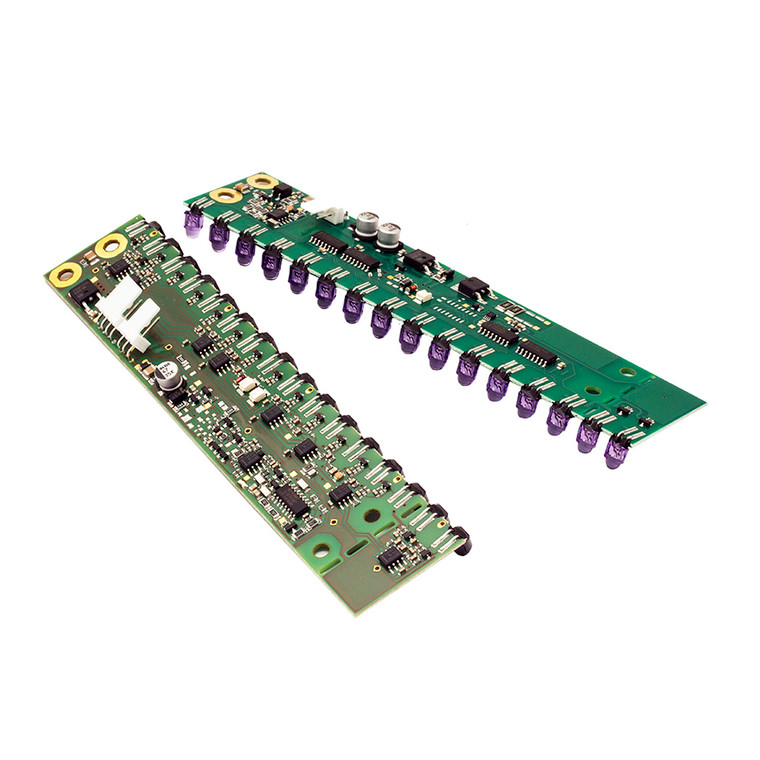

The Datasensing NX14SR/XAP-C01020 Sensors offer a comprehensive area sensor kit designed for precision and reliability. Featuring 14 beams with a 90° configuration, this sensor kit provides adjustable sensitivity, ensuring optimal performance within a nominal sensing distance of 0.25 to 0.7 meters. The controlled height of 130mm and a beam spacing of 10mm allow for the detection of objects as small as Ø 5mm. With a switching frequency of 130Hz, the sensors deliver fast and accurate responses.
The kit includes both an emitter and a receiver, with the emitter consuming a no-load supply current of 150mA and the receiver 25mA. The load current capacity is 100mA, with a minimal leakage current of less than 10µA at 26V and an output voltage drop of ?2V at 100mA. The sensors are equipped with LED indicators for easy monitoring: a yellow LED on the emitter indicates power ON and emission activity, while the receiver features a red LED for signal level and a yellow LED for output state activity.
Operating with infrared emission at 880nm, the sensors are resistant to external light interference, tolerating up to 1000 lux from incandescent light and 1500 lux from sunlight. The connections are facilitated through PCB connectors, ensuring secure and efficient installation. The compact dimensions of 140x36x18 make it suitable for various applications, although mechanical protection is not defined. This sensor kit is ideal for environments requiring precise object detection and reliable performance.
- Nominal sensing distance:
- 0,25 0,7m
- Beams space:
- 10mm
- controlled height:
- 130mm
- minimum detectable object:
- Ø 5mm
- Output Function:
- NO
- Switching frequency:
- 130Hz
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Dimensions:
- 140x36x18
- Mechanical Protection:
- Not defined
