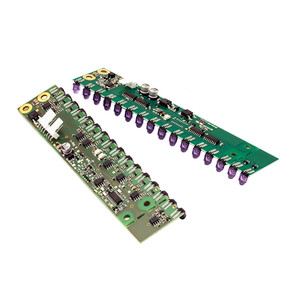

Datasensing NX14SR/XCN-AT10 Sensors
Datasensing
$249.63
The Datasensing NX14SR/XCN-AT10 Sensors offer a comprehensive solution for detecting objects in various applications, including automatic vending machines. This area sensor kit features 14 beams with a controlled height of 130mm and a beam spacing of 10mm, ensuring precise detection of objects as small as Ø 5mm. The sensors operate with a nominal sensing distance ranging from 0.5 to 2 meters, and they include sensitivity adjustment for optimal performance.
Equipped with LED indicators, the emitter displays a yellow light when powered on and active, while the receiver shows a red light for signal level and a yellow light for output state. The sensors utilize an NPN output type with a normally closed (NC) function, and they support a switching frequency of 130Hz. The response time for light/dark transition is 500µs, and for dark/light transition, it is 7ms.
Designed for durability, the sensors provide complete protection against electrical damages, including short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. They are resistant to external light interference, withstanding up to 1000 lux from incandescent light and 1500 lux from sunlight. The sensors operate within a voltage range of 10 to 26VDC, with a no-load supply current of 150mA for the emitter and 25mA for the receiver.
The compact design, measuring 140 x 36 x 18mm and weighing 104g, includes PCB connectors for easy installation. The sensors function effectively within an operating temperature range of 0°C to +55°C, making them suitable for various environments. With crossed beams detection and no housing required, the Datasensing NX14SR/XCN-AT10 Sensors are an ideal choice for applications requiring reliable and precise object detection.
- Nominal sensing distance:
- 0,5 2m
- Beams space:
- 10mm
- controlled height:
- 130mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 14
- Sensitivity adjustment:
- Yes
- Function Principle:
- emitter+receiver
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 130Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 7ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Time delay before availability:
- < 85 ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 140 x 36 x 18mm
- Weight:
- 104g
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Degree of protection:
- Not defined
- Dimensions:
- 140x36x18
- Mechanical Protection:
- Not defined
