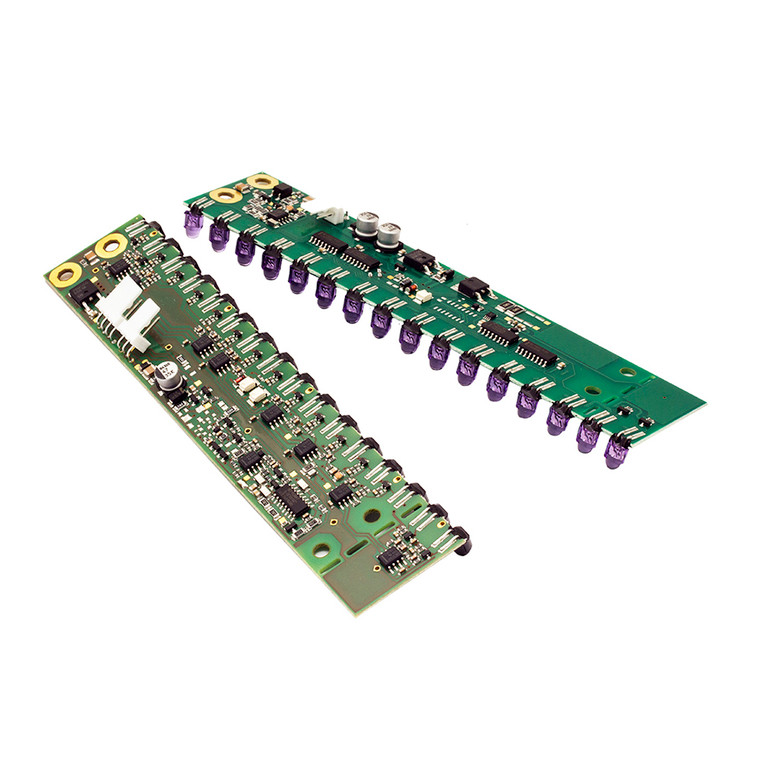

Datasensing NX14SR/XCN-CT10 Sensors

The Datasensing NX14SR/XCN-CT10 Sensors offer a comprehensive area sensor kit designed for precision and reliability. Featuring 14 beams with a controlled height of 130mm, this sensor kit is equipped with a 90° sensing angle and adjustable sensitivity, making it ideal for various applications. The nominal sensing distance ranges from 0.5 to 2 meters, with a beam spacing of 10mm, allowing for the detection of objects as small as Ø 5mm. The sensors operate with an NPN NC output function and a switching frequency of 130Hz, ensuring quick and accurate responses. The no-load supply current is 150mA for the emitter and 25mA for the receiver, with a load current capacity of 100mA. The system is designed to minimize power loss, with a leakage current of less than 10µA at 26V and an output voltage drop of ?2V at 100mA. LED indicators provide clear status updates: the emitter features a yellow LED for power and emission activity, while the receiver includes a red LED for signal level and a yellow LED for output state activity. The sensors utilize infrared emission at 880nm and are resistant to external light interference, withstanding up to 1000lux from incandescent light and 1500lux from sunlight. Connections are facilitated through PCB connectors, with specific MOLEX configurations for both the emitter and receiver. The compact dimensions of 140x36x18 ensure easy integration into various systems, although mechanical protection is not defined. This sensor kit is an excellent choice for applications requiring precise area monitoring and object detection.
