Datasensing NX16SR/XAN-A010 Sensors
Datasensing
$202.82

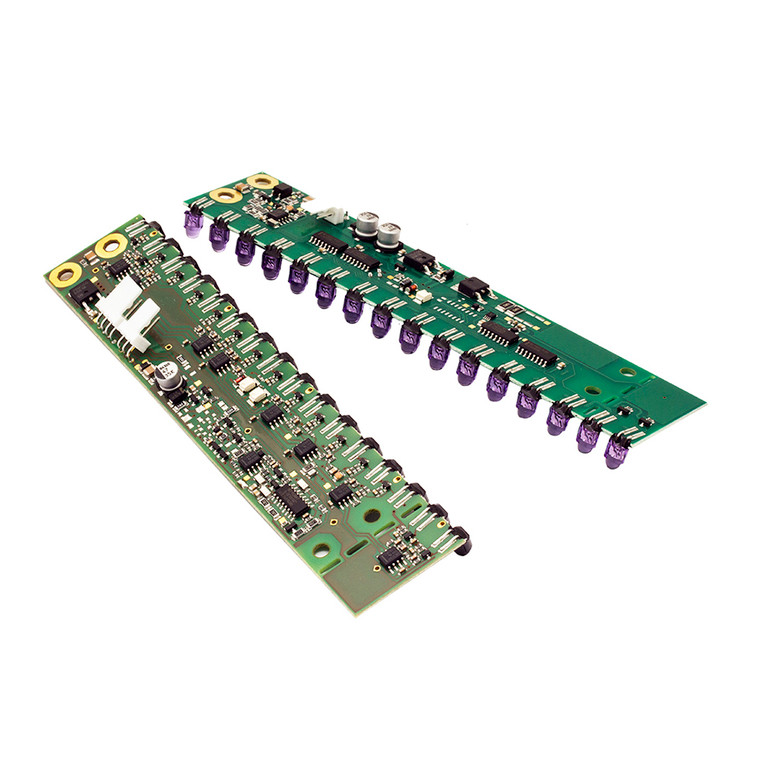

The Datasensing NX16SR/XAN-A010 Sensors offer a comprehensive solution for detecting objects in various applications, including automatic vending machines and environments with irregularly shaped items. This area sensor kit features 16 beams with a controlled height of 150mm and a beam spacing of 10mm, ensuring precise detection with a nominal sensing distance ranging from 0.5 to 2 meters. The sensors are equipped with sensitivity adjustment and an NPN NO output function, providing flexibility and reliability in diverse settings.
Designed without housing, the sensors incorporate crossed beams detection and LED indicators for easy monitoring. The emitter and receiver components are protected against electrical damages, including short-circuit and reverse polarity protection, ensuring durability and longevity. With a switching frequency of 130Hz and rapid response times, these sensors are ideal for high-speed applications.
The compact design, measuring 157 x 36 x 18mm and weighing 104g, allows for easy integration into existing systems. The sensors operate efficiently within a temperature range of 0°C to +55°C and are resistant to external light interference, making them suitable for various lighting conditions. With PCB connectors and MOLEX connections, installation is straightforward, providing a seamless user experience.
- Nominal sensing distance:
- 0,5 2m
- Beams space:
- 10mm
- controlled height:
- 150mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 16
- Sensitivity adjustment:
- Yes
- Function Principle:
- emitter+receiver
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 130Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 7ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Time delay before availability:
- < 85 ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 157 x 36 x 18mm
- Weight:
- 104g
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Degree of protection:
- Not defined
- Dimensions:
- 157x36x18
- Mechanical Protection:
- Not defined
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
