Datasensing NX16SR/XCN-CT10 Sensors
Datasensing
$259.52

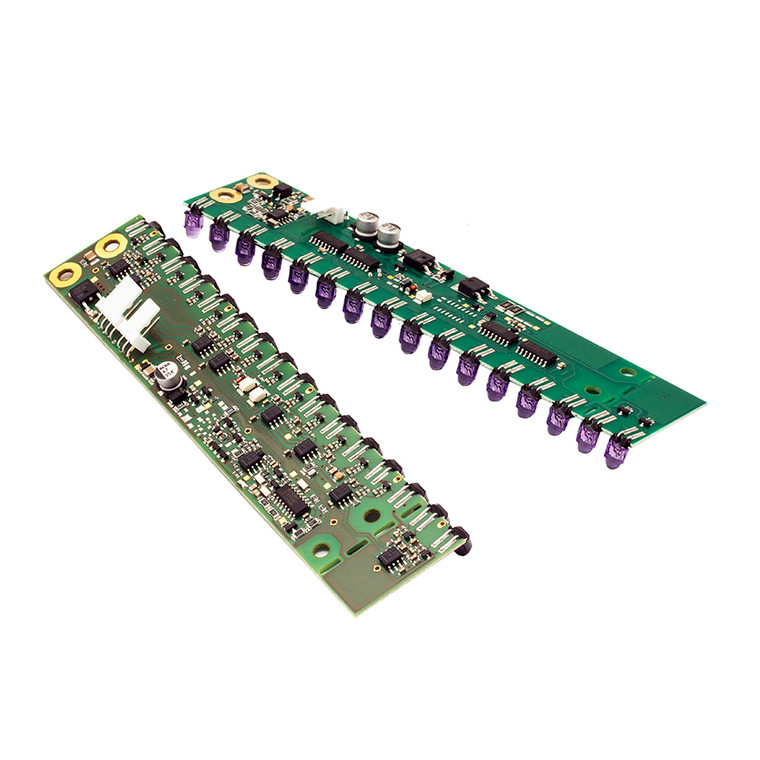

The Datasensing NX16SR/XCN-CT10 Sensors offer a comprehensive solution for detecting objects in various applications, including automatic vending machines. This area sensor kit features 16 beams with a controlled height of 150mm and a nominal sensing distance ranging from 0.5 to 2 meters. The sensors are equipped with sensitivity adjustment and a 90° detection angle, ensuring precise detection of objects with irregular shapes.
The kit operates on an emitter and receiver principle, with an NPN output type and NC output function. It boasts a high switching frequency of 130Hz and quick response times for both light/dark and dark/light transitions. The sensors are designed to withstand electrical damages, featuring short-circuit and reverse polarity protection, as well as impulsive overvoltage protection.
LED indicators provide clear status updates, with yellow lights indicating power and emission activity on the emitter, and red and yellow lights on the receiver showing signal level and output state activity. The sensors are built to handle interference from external light sources, withstanding up to 1000 lux from incandescent light and 1500 lux from sunlight.
Compact and lightweight, the sensors measure 157 x 36 x 18mm and weigh 104g. They are designed for easy integration with PCB connectors and operate within a temperature range of 0°C to +55°C. With a beam spacing of 10mm and the ability to detect objects as small as Ø 5mm, the Datasensing NX16SR/XCN-CT10 Sensors are a reliable choice for precise and efficient object detection.
- Nominal sensing distance:
- 0,5 2m
- Beams space:
- 10mm
- controlled height:
- 150mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 16
- Sensitivity adjustment:
- Yes
- Function Principle:
- emitter+receiver
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 130Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 7ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 150mA (emitter) - 25mA (receiver)
- Load current:
- 100mA
- Leakage current:
- < 10µA @ 26V
- Output voltage drop:
- ?2V@100mA
- Max ripple content:
- 10%
- LED indicators:
- emitter: yellow (poweON and emission active) - receiver: red (signal level) - yellow (output state active)
- Time delay before availability:
- < 85 ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1000lux (incandescent light) - 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 157 x 36 x 18mm
- Weight:
- 104g
- Connections:
- With PCB connectors / Emitter, Conn. 3 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 1 MOLEX 22-05-7038 - Positive, Check, Common / Receiver, Conn. 2 MOLEX 22-05-7048 Positive, Check, Output, Common
- Degree of protection:
- Not defined
- Dimensions:
- 157x36x18
- Mechanical Protection:
- Not defined
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
