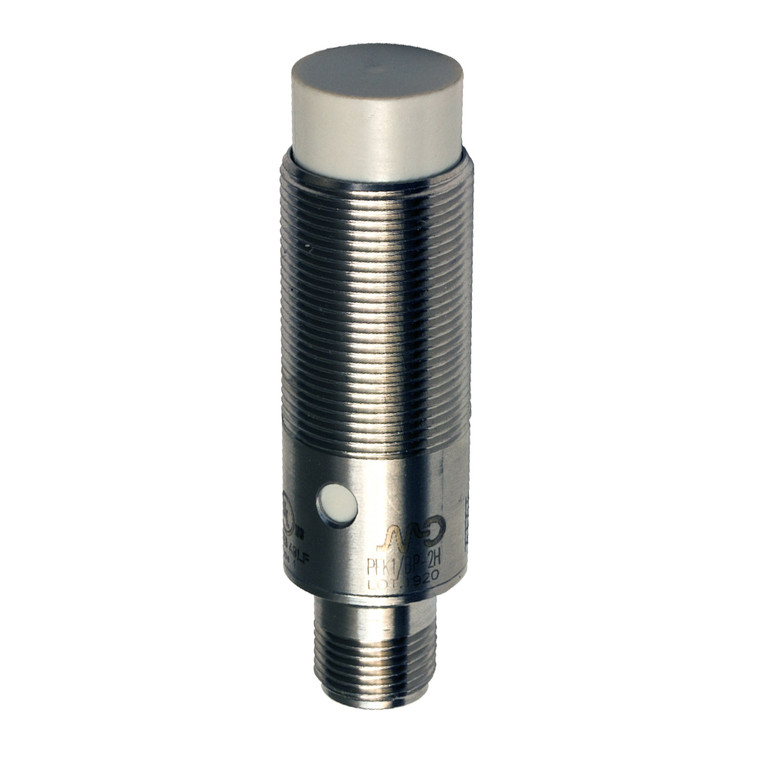

Datasensing PFK1/BP-2H Sensors
Datasensing
$96.06
The Datasensing PFK1/BP-2H Sensors are designed for precision and durability, featuring an M18 unshielded standard with NO+NC/PNP connection and M12 plug. Encased in robust AISI 316L stainless steel, these sensors offer complete protection against electrical damages and are suitable for a wide range of industrial applications. With a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, they ensure accurate proximity detection. The sensors are equipped with a yellow LED status indicator and provide reliable performance with a switching frequency of 1.5kHz. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 15mA and a load current of ? 200mA. Designed to withstand harsh environments, they boast an IP67, IP68, and IP69K protection degree, and are capable of operating in temperatures from -40°C to +80°C, with short exposure tolerance up to 100°C. The sensors also feature short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring long-lasting functionality. Ideal for standard and long-distance applications, these sensors are CE, cULus, ECOLAB, and DIVERSY approved, and come with two M18x1 nuts for easy installation.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,27 / aluminium: 0,35 / brass: 0,42 / stainless steel: 0,70
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 1,5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 2V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 55g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 50Nm
- Material:
- AISI316L Stainless Steel
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus ECOLAB DIVERSY
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP68, IP69K
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
