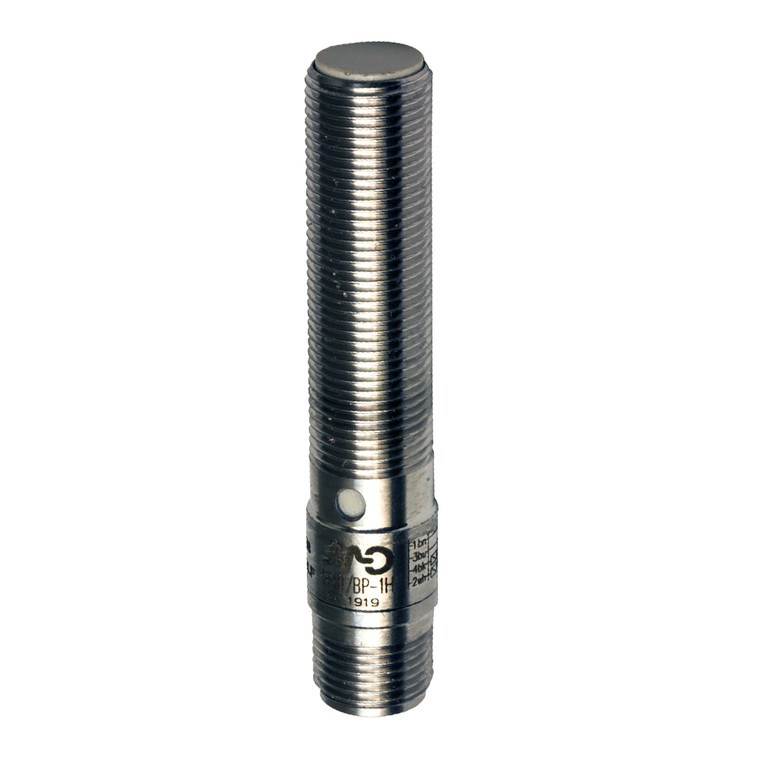

Datasensing PFM1/BP-1H26 Sensors
Datasensing
$164.49
The Datasensing PFM1/BP-1H26 Sensors are designed for precision and durability, featuring an M12 standard flush mount with a robust AISI 316L stainless steel housing. These inductive sensors offer a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, making them ideal for various industrial applications. They are equipped with a PNP output type and provide both NO and NC output functions, ensuring versatile performance.
With a wide operating temperature range of -25°C to +110°C, these sensors are suitable for harsh environments. They boast a high switching frequency of 2kHz and are protected against short-circuits, reverse polarity, impulsive overvoltage, and inductive loads. The sensors are IP67, IP68, and IP69K rated, offering complete protection against dust and water ingress.
The PFM1/BP-1H26 Sensors are EMC compatible with IEC 60947-5-2 standards and have been approved by CE, cULus, ECOLAB, and DIVERSEY. They come with two M12x1 nuts for easy installation and feature a PPS active head material for enhanced performance. With a compact design and a weight of just 30g, these sensors are an excellent choice for reliable and efficient proximity detection in demanding industrial settings.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,25 / aluminium: 0,30 / brass: 0,40 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 200mA
- Leakage current:
- ? 15?A
- Output voltage drop:
- ? 2V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- No
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 25Nm
- Material:
- AISI316L Stainless Steel
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus ECOLAB DIVERSEY
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP68, IP69K
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
