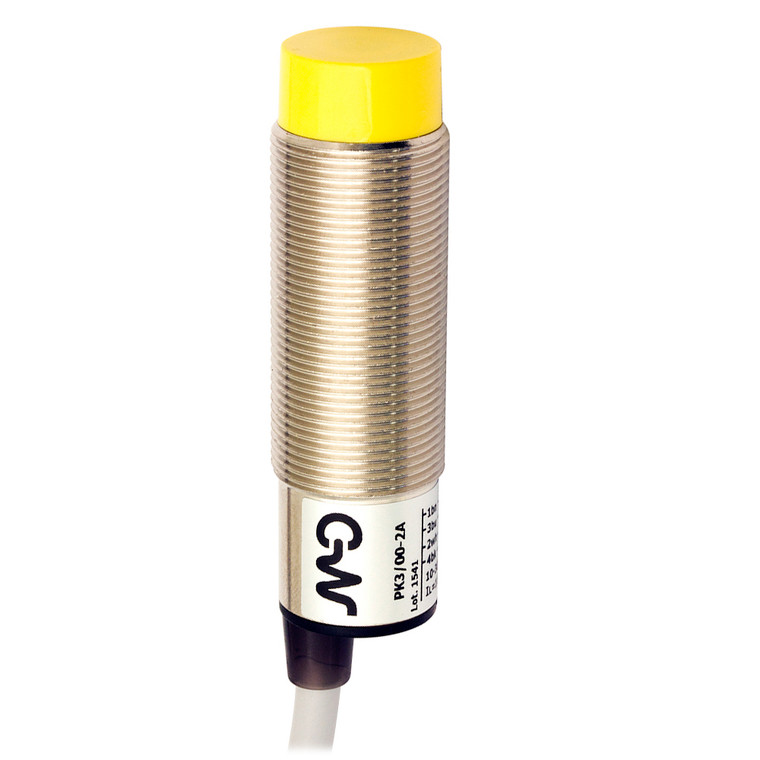

Datasensing PK3/00-2A86 Sensors
Datasensing
$92.20
The Datasensing PK3/00-2A86 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M18 unshielded design, these sensors come with a 5-meter axial cable and offer both NPN and PNP output types with NO/NC output functions. With a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, they are ideal for detecting standard targets of 24x24mm FE360. The sensors boast a robust nickel-plated brass housing and PBT active head material, ensuring durability and resistance to harsh environments.
These sensors are equipped with advanced features such as short-circuit, reverse polarity, and impulsive overvoltage protection, making them suitable for demanding industrial applications. They operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 30mA and a load current of ? 100mA. The sensors also feature a yellow LED indicator for output state, ensuring easy monitoring.
With a switching frequency of 300Hz and a maximum ripple content of ? 10%, these sensors provide accurate and reliable performance. They are designed to withstand shocks and vibrations as per IEC standards and offer mechanical protection with an IP67 rating. The sensors come with supplied accessories, including two M18x1 nuts, and are CE approved with EMC compatibility according to IEC 60947-5-2. Ideal for proximity sensing applications, the Datasensing PK3/00-2A86 Sensors deliver exceptional performance in a compact and durable package.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,53 / brass: 0,56 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN/PNP
- Output Function:
- NO/NC
- Switching frequency:
- 300Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 30mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,2V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M18x1
- Dimensions:
- M18 x 1 / L = 68mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
