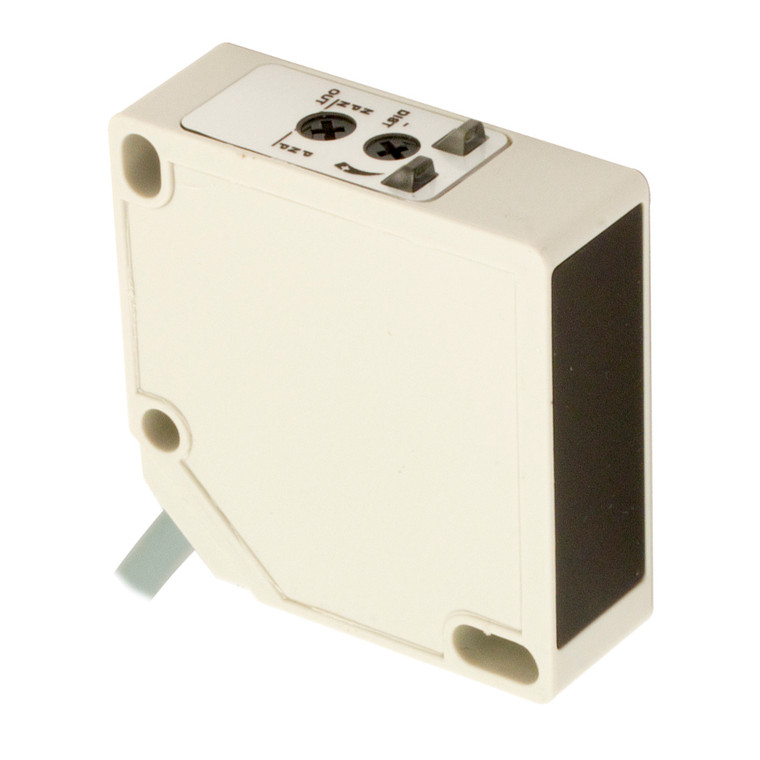

Datasensing Q50I6/B0-0A Sensors
Datasensing
$100.35
The Datasensing Q50I6/B0-0A Sensors are universal photoelectric sensors designed for high performance and versatility. With a compact 50x50mm cubic design, these sensors offer a nominal sensing distance of 1 meter and feature a diffuse reflection principle for long-distance detection over 600mm. The sensors are equipped with NPN/PNP selectable NO+NC outputs, providing flexibility for various applications. They boast a fast switching frequency of 500Hz and a quick response time of 1ms, ensuring efficient operation.
The Q50I6/B0-0A sensors are built to withstand harsh environments, with a robust PC/ABS housing and an IP67 degree of protection. They are resistant to electrical damages, featuring short-circuit and reverse polarity protection. The sensors operate within a wide voltage range of 10 to 30VDC and have a low no-load supply current of ? 40mA. The LED indicators provide clear status updates, with a yellow LED for output status and a green LED for stability and power ON.
These sensors come with a 2-meter PVC cable for easy installation and are supplied with a mounting bracket for added convenience. They are designed to operate in temperatures ranging from -20°C to +60°C, making them suitable for various industrial applications. The Q50I6/B0-0A sensors also offer a wide choice of optical functions, including diffuse, background suppression, polarized, and through beam options, catering to diverse sensing needs.
- Nominal sensing distance:
- 1m
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,1m
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Optic position:
- Axial
- Output type:
- NPN/PNP Selectable NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?200mA
- Output voltage drop:
- ?2,5V@Iload=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Output status), Green (stability, powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (850nm)
- Dimensions:
- 50X50mm
- Weight:
- 200g
- Housing Material:
- PC/ABS
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Operating temperature:
- - 20°C + 60°C ( UL omologation 0°C 60°C)
- Material:
- PC/ABS
- Diameter/Dimension:
- Cubic
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-51
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket
- Dimensions:
- 50x50x17mm
- Operating Temperature:
- - 20°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
