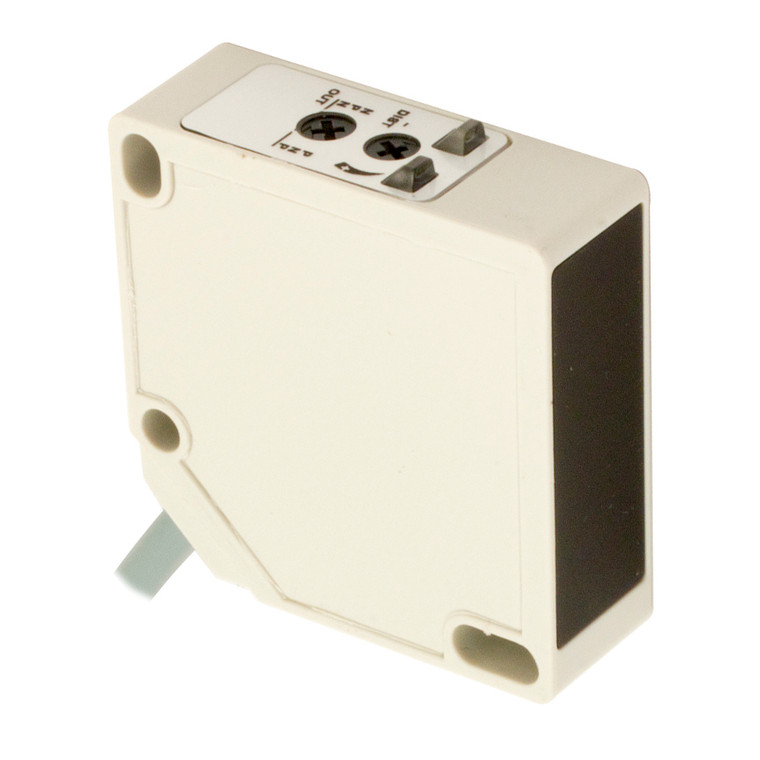

The Datasensing Q50IH/00-0A Sensors are universal photoelectric sensors designed for high performance and versatility. With a compact 50x50mm cubic design, these sensors offer a nominal sensing distance of 20 meters and feature a trimmer for sensitivity adjustment. The emitter operates on a 10
30VDC voltage range, with a no-load supply current of ? 50mA and a maximum ripple content of ?10%.
Equipped with dual multifunction output state LEDs, the sensors provide clear status indication with a green LED for power ON. They are protected against short-circuits and reverse polarity, ensuring reliable operation. The sensors offer a wide choice of optical functions, including diffuse sensing up to 2 meters, background suppression up to 500 mm, polarized sensing up to 6 meters, and through beam sensing up to 20 meters.
Constructed with durable PC/ABS housing and a PMMA active head, the sensors are designed to withstand harsh environments with an IP67 degree of protection. They are EMC compatible with EN 60947-5-2 standards and can endure shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-59 standards. Operating efficiently in temperatures ranging from -20°C to +60°C, these sensors are supplied with a mounting bracket for easy installation. The 2m PVC cable connection ensures flexibility in various applications, making the Datasensing Q50IH/00-0A Sensors an ideal choice for diverse industrial needs.
- Nominal sensing distance:
- 20m
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter
- Optic position:
- Axial
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 50mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (850nm)
- Dimensions:
- 50X50mm
- Weight:
- 200g
- Housing Material:
- PC/ABS
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Operating temperature:
- - 20°C + 60°C ( UL omologation 0°C 60°C)
- Material:
- PC/ABS
- Diameter/Dimension:
- Cubic
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-59
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket
- Dimensions:
- 50x50x17mm
- Operating Temperature:
- - 20°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
