Datasensing Q50IS/B0-0E Sensors
Datasensing
$213.57
The Datasensing Q50IS/B0-0E Sensors are universal photoelectric sensors designed for high performance and versatility. With a nominal sensing distance of 500mm and a minimum sensing distance of 120mm, these sensors are equipped with background suppression technology for precise detection. The sensors feature an axial optic position and offer selectable NPN/PNP outputs with NO+NC functions, ensuring adaptability to various applications.
Operating on a voltage range of 10 to 30VDC, the sensors have a fast switching frequency of 500Hz and a quick response time of 1ms, making them suitable for dynamic environments. They are protected against electrical damages with short-circuit and reverse polarity protection, and they feature dual multifunction output state LEDs for easy status monitoring.
Constructed with a durable PC/ABS housing and a PMMA active head, the sensors are designed to withstand harsh conditions, with an operating temperature range of -20°C to +60°C and an IP67 degree of protection. The compact cubic design (50x50x17mm) and M12 plug connection make installation straightforward, and the included mounting bracket adds convenience.
Ideal for applications requiring reliable and precise sensing, the Datasensing Q50IS/B0-0E Sensors offer a wide choice of optical functions, including diffuse, background suppression, polarized, and through beam options, catering to diverse industrial needs.
- Nominal sensing distance:
- 500mm
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 120mm
- Function Principle:
- Blackground suppression
- Optic position:
- Axial

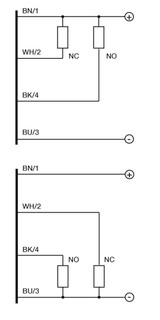

- Output type:
- NPN/PNP Selectable NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?200mA
- Output voltage drop:
- ?2,5V@Iload=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Output status), Green (stability, powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (850nm)
- Dimensions:
- 50X50mm
- Weight:
- 105g
- Housing Material:
- PC/ABS
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 20°C + 60°C ( UL omologation 0°C 60°C)
- Material:
- PC/ABS
- Diameter/Dimension:
- Cubic
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-63
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket
- Dimensions:
- 50x50x17mm
- Operating Temperature:
- - 20°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
