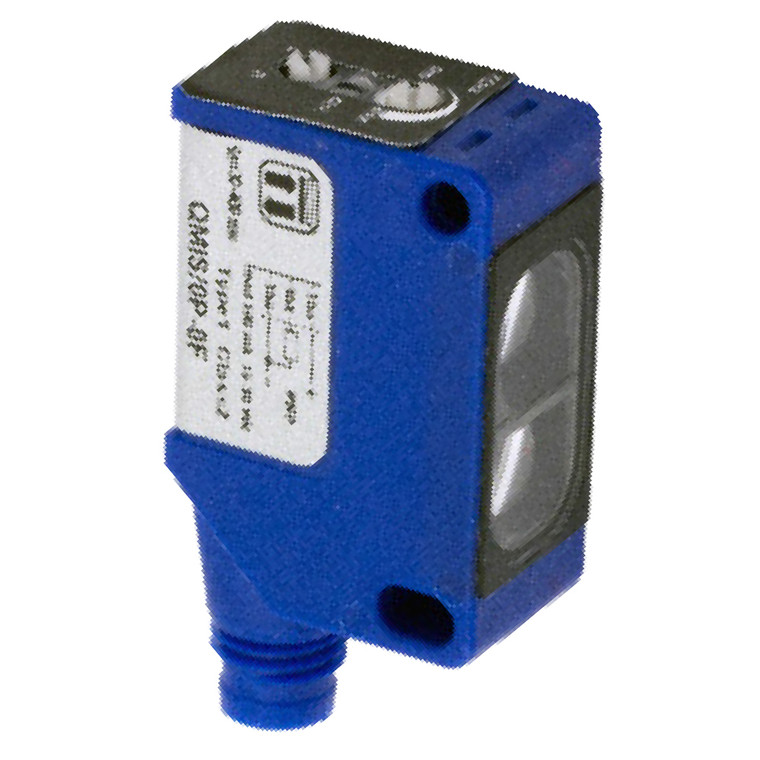

Datasensing QMRN/0P-0FPT Sensors

The Datasensing QMRN/0P-0FPT Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a miniature cubic design, these sensors offer a nominal sensing distance of 5 meters with a polarized function principle, ensuring accurate detection even in challenging environments. The sensors are equipped with a PNP L/D selectable output type, allowing for flexible integration into various systems. With a high switching frequency of 2kHz and a rapid response time of 250µs, these sensors are ideal for fast-paced applications. The sensitivity can be easily adjusted using a trimmer, and the sensors are designed to operate efficiently within a voltage range of 10 to 30VDC. They consume minimal power with a no-load supply current of ? 30mA and support a load current of up to 100mA. Built to withstand harsh conditions, the sensors feature a robust PA66 housing and PMMA active head material, offering IP67 mechanical protection. They are resistant to shocks and vibrations as per IEC standards and can operate in temperatures ranging from -25°C to +70°C. The sensors also include LED indicators for status output and stability, providing clear visual feedback. Additional features include short-circuit and reverse polarity protection, impulsive overvoltage protection, and compatibility with EMC standards. The sensors are designed for easy installation with an M8 plug 4-pin connection and a compact dimension of 40.6x21x13mm. Approved by CE and cULus, these sensors are a reliable choice for various industrial applications.
