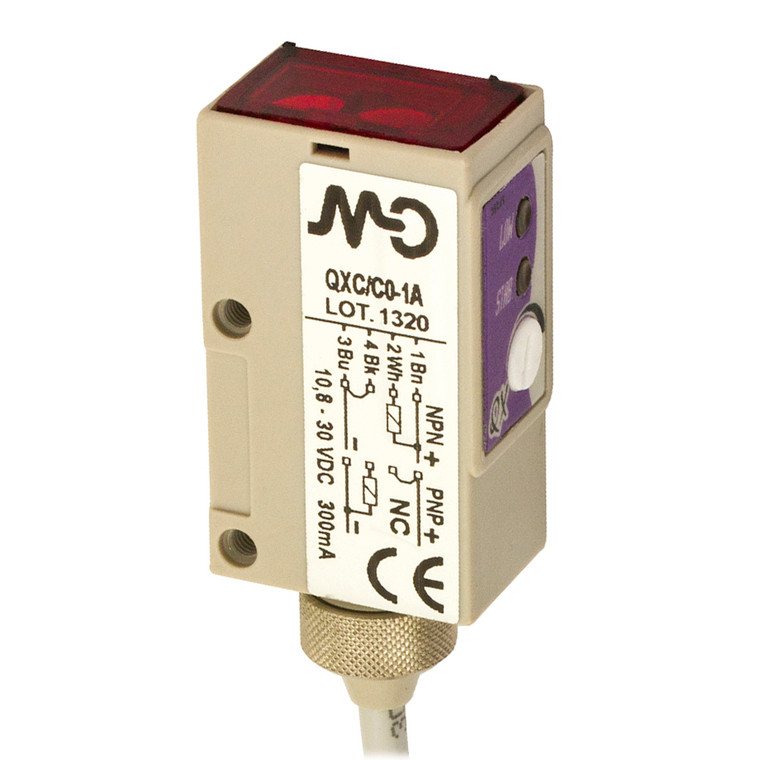

Datasensing QXC/C0-1A Sensors
Datasensing
$187.69
The Datasensing QXC/C0-1A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a retroreflective function with a nominal sensing distance of 5 meters, these sensors are equipped with axial optics and a 2-meter optic cable for versatile installation. The sensors boast a fast response time of 0.75-0.5 ms and a high switching frequency of 750Hz, ensuring quick and accurate detection. With NPN-PNP selectable output and a high output current capacity of over 300 mA, these sensors are adaptable to various applications. The visible red light in retro-reflective, polarized, and through-beam models enhances long-distance capability and precision beam performance.
The QXC/C0-1A Sensors are built with durability in mind, featuring a robust ABS housing and an IP65 degree of protection, making them suitable for challenging environments. They are equipped with LED indicators for output status and stability, and offer short-circuit and reverse polarity protection for enhanced safety. The sensors operate efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 20mA.
Additional features include a sensitivity adjustment trimmer, a response time of 666µs, and a maximum ripple content of ?10%. The sensors are designed to withstand shocks and vibrations as per IEC standards, and are CE approved with EMC compatibility. Supplied with ST70 mounting brackets and screws, the Datasensing QXC/C0-1A Sensors are a reliable choice for precise and efficient photoelectric sensing needs.
- Nominal sensing distance:
- 5m
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retro-reflector
- Optic position:
- Axial
- Output type:
- NPN/PNP Selectable NC
- Output Function:
- NC
- Switching frequency:
- 750Hz
- Response time:
- 666µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?300mA
- Leakage current:
- ? 100?A @ 30Vdc
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red(output status) , Geen (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Dimensions:
- 15x23x58
- Weight:
- 70g
- Connections:
- 2m PVC cable
- Active Head Material:
- Acrylic
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Material:
- ABS
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST70 mounting brakets and screws
- Dimensions:
- 15x23x40
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
