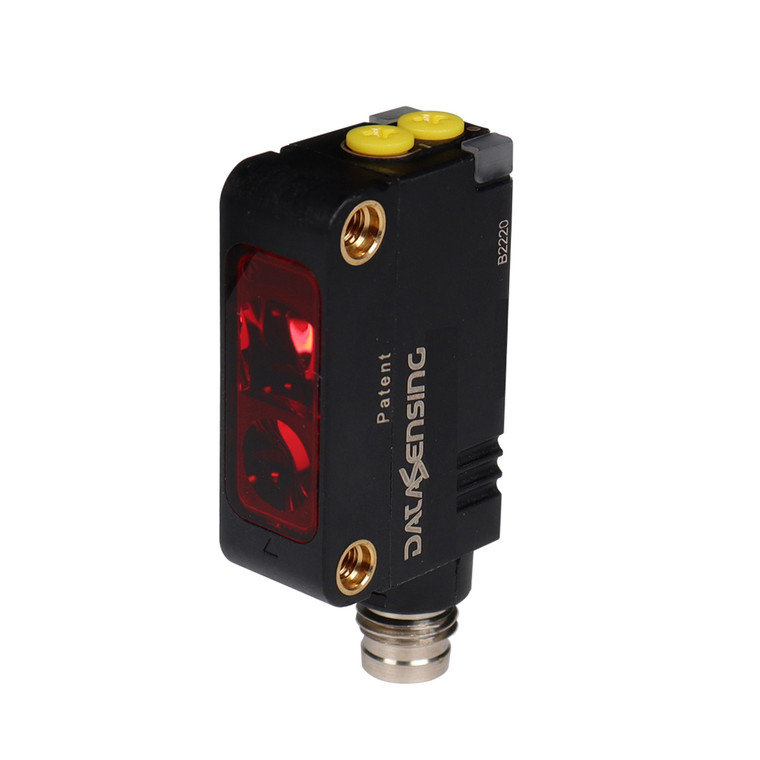

Datasensing Red Laser emission Background Suppressor double trimmer Adj + L/D PNP Connector M8 4P
Datasensing
$132.90
The Datasensing Red Laser Emission Background Suppressor is a versatile and advanced sensor designed for precise object detection and background suppression. Featuring a bright red laser emission, this model offers multiple background suppression functions, making it ideal for detecting shiny and clear objects. It supports single, double trimmer, and push button models, with a diffuse proximity range of up to 100 cm and background suppression up to 800 mm for LED trimmer versions. The sensor boasts a polarized RRX range of 12 m with red laser emission and a through-beam range of 30 m.
Equipped with an M8 4-pin connector, the sensor ensures reliable connectivity and is housed in a rugged IP67 plastic miniature case with M3 threaded holes and metal inserts for secure mounting. It features state-of-the-art IO-Link connectivity with extended Smart Tasks, allowing for seamless integration into various systems. The sensor's nominal sensing distance is 600 mm, with a sensitivity adjustment via a 9-turn trimmer and a minimum sensing distance of 0 mm.
The sensor operates on a voltage range of 10 to 30 VDC, with a no-load supply current of ? 35 mA and a load current of ? 100 mA. It includes short-circuit and reverse polarity protection, ensuring durability and reliability in various environments. The housing is made from plastic polymer fiber glass reinforced material, with an active head made of PMMA, and it is designed to withstand operating temperatures from -25°C to 55°C.
With CE, cULus, and CDRH 1 approvals, this sensor meets high standards of safety and performance, making it an excellent choice for industrial applications requiring precise and reliable sensing capabilities.
- Nominal sensing distance:
- 600mm
- Sensitivity adjustment:
- 9 turn trimmer
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Blackground suppression
- Notes:
- (class 1 LASER) white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Functions:
- Background suppression
- Output type:
- PNP L/D selectable by trimmer L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1,5kHz
- Response time:
- 333µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green POWER ON LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus CDRH 1
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
