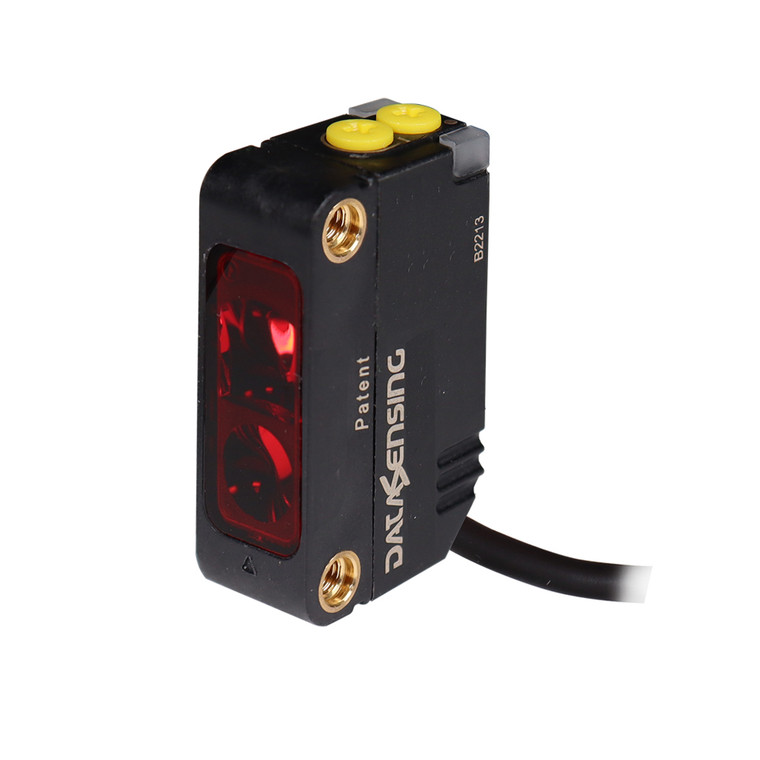

Datasensing Red Laser emission Retro Reflex polarized double trimmer Adj + L/D NPN Cable
Datasensing
$113.90
The Datasensing Red Laser Emission Retro Reflex Polarized Double Trimmer is a cutting-edge sensor designed for precision and reliability. Featuring a visible and bright red laser emission, this model excels in detecting shiny and clear objects with its advanced polarized retroreflective function. It offers a nominal sensing distance of 12 meters and a minimum sensing distance of 0.1 meters, ensuring accurate performance in various applications. The sensor is equipped with a single turn trimmer for sensitivity adjustment and supports L/D selectable output with NPN type.
Built with a rugged IP67 plastic miniature case, it is designed to withstand harsh environments, offering short-circuit and reverse polarity protection. The device operates efficiently within a voltage range of 10 to 30 VDC, with a low no-load supply current of ? 35mA. It features a fast switching frequency of 2kHz and a quick response time of 500µs, making it ideal for high-speed operations.
The sensor is equipped with state-of-the-art IO-Link connectivity, allowing for extended smart tasks and seamless integration into modern automation systems. It includes LED indicators for output and power status, ensuring easy monitoring. The robust construction includes a plastic polymer fiber glass reinforced housing and a PMMA active head material, ensuring durability and longevity.
With approvals from CE, cULus, and CDRH 1, and compliance with EMC compatibility standards, this sensor is a reliable choice for industrial applications requiring precise object detection and background suppression.
- Nominal sensing distance:
- 12m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0,1m
- Function Principle:
- Polarized retroreflective
- Notes:
- On R7 reflector (class 1 LASER)
- Optic position:
- Radial 90°
- Functions:
- Polarized retroreflective
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 2kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green POWER ON LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus CDRH 1
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
