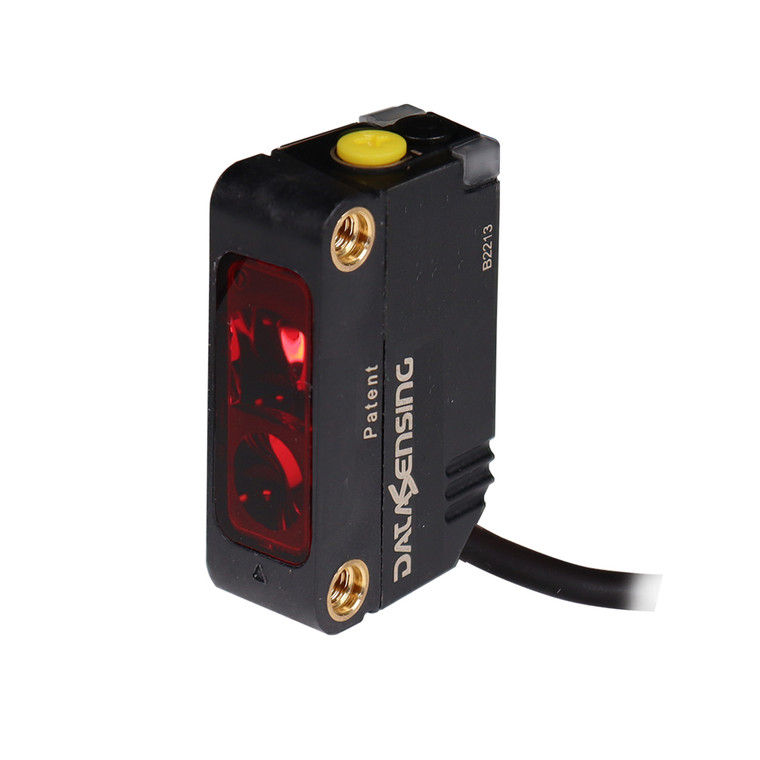

Datasensing Red LED emission Diffused narrow beam short distance 200mm single trimmer Dark Output NPN Cable
Datasensing
$60.50
The Datasensing Red LED Emission Diffused Narrow Beam Sensor is designed for precision and reliability in various industrial applications. This sensor features a bright red LED emission with a narrow beam, ideal for short-distance detection up to 200mm. It includes a single trimmer for easy sensitivity adjustment and operates on a diffuse beam principle, ensuring accurate detection of shiny and clear objects.
With a rugged IP67-rated plastic miniature case, this sensor is built to withstand harsh environments. It offers state-of-the-art IO-Link connectivity, allowing for extended smart tasks and seamless integration into your systems. The sensor is equipped with a 2m cable for easy connection and features M3 threaded holes with metal inserts for secure mounting.
The sensor's advanced features include background suppression up to 800mm, polarized RRX capabilities, and a through-beam range of up to 20m. It operates efficiently with an operating voltage of 10
30VDC and provides reliable performance with short-circuit and reverse polarity protection. The sensor's LED indicators provide clear status updates, with a yellow OUTPUT LED and a green STABILITY LED.
Constructed with a plastic polymer fiber glass reinforced housing and PMMA active head material, this sensor is designed for durability. It meets CE cULus approvals and EMC compatibility standards, ensuring high-quality performance. With a compact cubic design measuring 11x31x19 mm, this sensor is perfect for applications requiring precise and reliable object detection.
- Nominal sensing distance:
- 250mm
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 1mm
- Function Principle:
- Diffuse beam
- Notes:
- (narrow beam) White 90%
- Optic position:
- Radial 90°
- Functions:
- Diffuse beam
- Output type:
- NPN Don
- Output Function:
- Don
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
