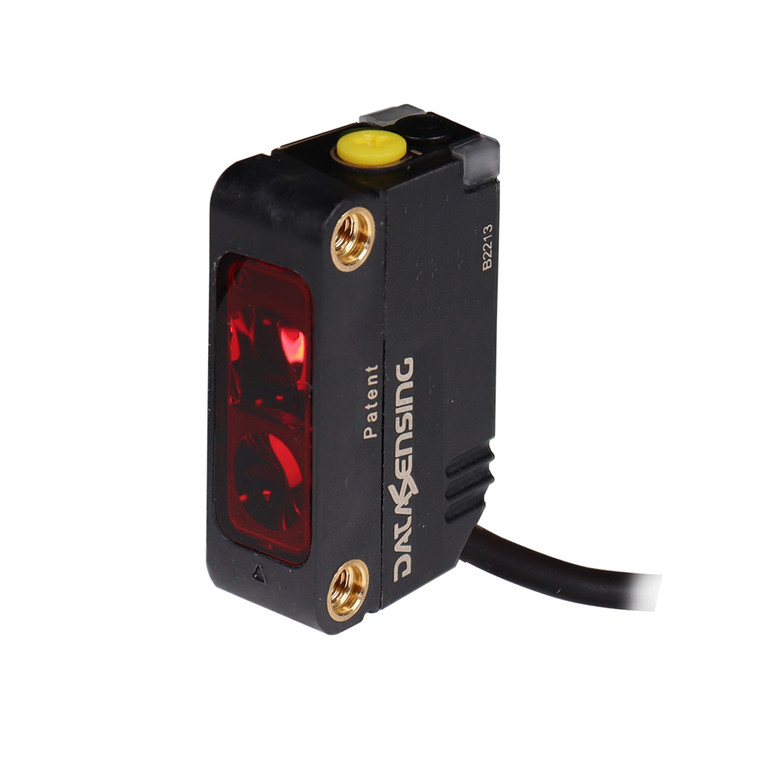

Datasensing Red LED emission Diffused narrow beam short distance 200mm single trimmer Dark Output PNP Cable

The Datasensing Red LED Emission Diffused Narrow Beam Sensor is designed for precision and reliability in short-distance applications up to 200mm. Featuring a rugged IP67 plastic miniature case, this sensor is equipped with a single trimmer for easy sensitivity adjustment and offers a nominal sensing distance of 250mm. Its diffuse beam function ensures accurate detection of shiny and clear objects, with a minimum sensing distance of just 1mm. The sensor operates on a PNP output type with a switching frequency of 1kHz and a rapid response time of 500µs, making it ideal for high-speed applications. This model boasts advanced features such as multiple background suppression functions, polarized RRX capabilities, and through-beam options for extended range detection. The sensor is equipped with state-of-the-art IO-Link connectivity, allowing for extended smart tasks and seamless integration into automated systems. It is protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring durability and longevity in demanding environments. The housing is constructed from a plastic polymer fiber glass reinforced material, with an active head made of PMMA, providing excellent insulation resistance and mechanical protection. The sensor is compatible with a wide operating voltage range of 10…30VDC and features LED indicators for output and stability, ensuring easy monitoring and maintenance. With approvals from CE and cULus, and EMC compatibility according to EN 60947-5-2, this sensor is a reliable choice for industrial applications requiring precise and efficient object detection.
