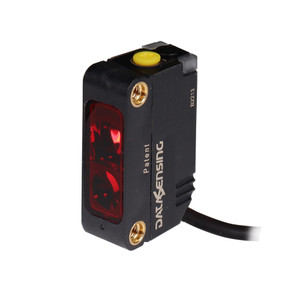

Datasensing Red LED emission Diffused narrow beam short distance 200mm single trimmer Light Output NPN Connector M8 4P
Datasensing
$63.53
The Datasensing Red LED Emission Diffused Narrow Beam Sensor is a cutting-edge solution designed for precise short-distance detection up to 200mm. This model features a single trimmer for light output adjustment and utilizes an NPN connector with an M8 4P configuration, ensuring seamless integration into various systems. With its visible and bright red LED emission, this sensor excels in detecting shiny and clear objects, making it ideal for applications requiring high accuracy.
Equipped with multiple background suppression functions, the sensor can handle diffuse proximity up to 100 cm and background suppression up to 800 mm. It offers a polarized RRX range of 7 m for red LED emission and 12 m for red laser emission, with through-beam capabilities extending to 20 m and laser up to 30 m. The rugged IP67 plastic miniature case, complete with M3 threaded holes and metal inserts, ensures durability and ease of installation.
The sensor's state-of-the-art IO-Link connectivity supports extended Smart Tasks, enhancing its functionality in complex environments. It operates on a nominal sensing distance of 250mm, with a sensitivity adjustment via a 1-turn trimmer. The device is designed to withstand harsh conditions, with an operating temperature range of -25°C to 55°C and a storage temperature range of -25°C to 70°C.
Additional features include short-circuit and reverse polarity protection, impulsive overvoltage protection, and compliance with EMC standards (EN 60947-5-2). The sensor's housing is made from a plastic polymer fiber glass reinforced material, ensuring robustness, while the active head is crafted from PMMA for optimal performance. With its compact dimensions of 11x31x19 mm, this sensor is a reliable choice for applications demanding precision and reliability.
- Nominal sensing distance:
- 250mm
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 1mm
- Function Principle:
- Diffuse beam
- Notes:
- (narrow beam) White 90%
- Optic position:
- Radial 90°
- Functions:
- Diffuse beam
- Output type:
- NPN Lon
- Output Function:
- Lon
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
- 2D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
