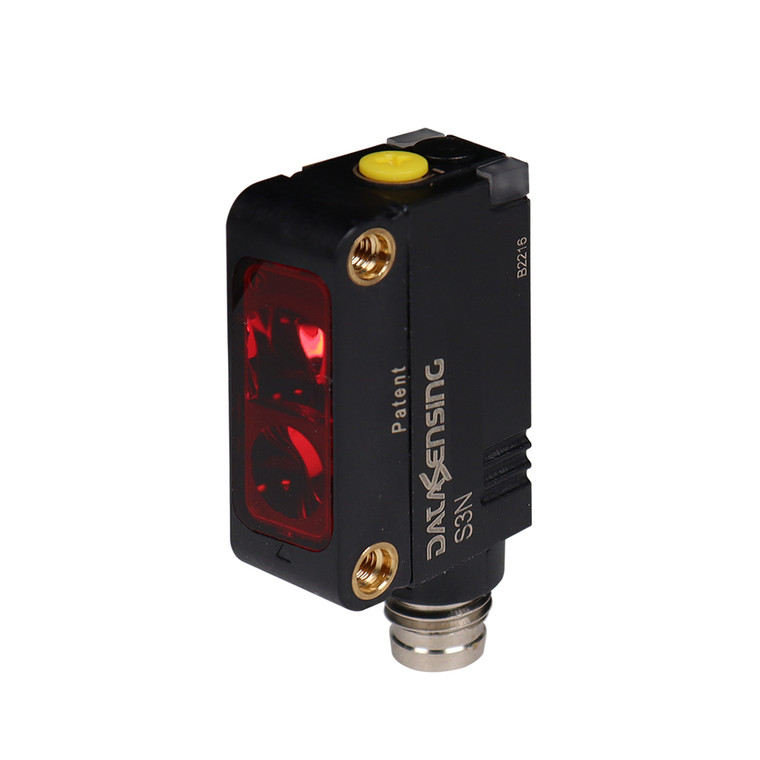

Datasensing Red LED emission Diffused narrow beam short distance 200mm single trimmer Light Output PNP Connector M8 4P

The Datasensing Red LED Emission Diffused Narrow Beam Sensor is designed for precision and reliability in short-distance applications. With a nominal sensing distance of 250mm and a minimum sensing distance of just 1mm, this sensor is perfect for detecting shiny and clear objects with ease. It features a single trimmer for sensitivity adjustment, allowing for precise control with a 1-turn trimmer. The sensor operates on a diffuse beam principle, with a radial optic position at 90°, ensuring accurate detection. Equipped with a PNP output type and a switching frequency of 1kHz, this sensor offers a fast response time of 500µs, making it ideal for high-speed applications. It operates within a voltage range of 10 to 30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. The sensor is designed with robust protection features, including short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The rugged IP67 plastic miniature case, reinforced with fiber glass, ensures durability in harsh environments. The sensor is equipped with an M8 plug 4-pin connector for easy installation and connectivity. LED indicators provide clear status updates, with a yellow OUTPUT LED and a green STABILITY LED. The sensor is compliant with CE and cULus approvals, ensuring high standards of safety and performance. With its state-of-the-art IO-Link connectivity and extended Smart Tasks, this sensor offers advanced functionality for modern industrial applications. Its compact dimensions of 11x31x19 mm make it easy to integrate into various setups, while its mechanical protection against shocks and vibrations ensures reliable operation. Whether for diffuse proximity detection up to 100 cm or background suppression up to 800 mm, the Datasensing Red LED Emission Sensor is a versatile and dependable choice for your sensing needs.
