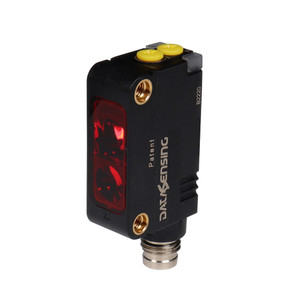

Datasensing Red LED emission Retro Reflex polarized double trimmer Adj + L/D NPN Connector M8 4P
Datasensing
$74.13
The Datasensing Red LED Emission Retro Reflex Polarized Double Trimmer is a cutting-edge sensor designed for precision and reliability. Featuring a visible and bright red LED emission, this model excels in detecting shiny and clear objects with its advanced polarized retroreflective function. It offers a nominal sensing distance of 7 meters and a minimum sensing distance of 0.05 meters, ensuring accurate performance in various applications.
Equipped with a single-turn trimmer for sensitivity adjustment, this sensor provides flexibility and ease of use. The rugged IP67 plastic miniature case, reinforced with fiberglass, ensures durability and protection against harsh environments. The sensor's M8 4-pin connector allows for seamless integration, while the state-of-the-art IO-Link connectivity enhances smart task capabilities.
With a switching frequency of 1kHz and a rapid response time of 500µs, this sensor is ideal for high-speed operations. It operates within a voltage range of 10 to 30VDC, with built-in protections against short-circuits, reverse polarity, and impulsive overvoltage. The LED indicators provide clear status updates, with a yellow OUTPUT LED and a green STABILITY LED.
Designed to withstand shocks and vibrations, this sensor complies with EMC compatibility standards and is approved by CE and cULus. Its compact cubic design, with dimensions of 11x31x19 mm, makes it suitable for space-constrained installations. The Datasensing Red LED Emission Retro Reflex Polarized Double Trimmer is the perfect choice for applications requiring precise object detection and reliable performance.
- Nominal sensing distance:
- 7m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0,05m
- Function Principle:
- Polarized retroreflective
- Notes:
- On R5 reflector
- Optic position:
- Radial 90°
- Functions:
- Polarized retroreflective
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
