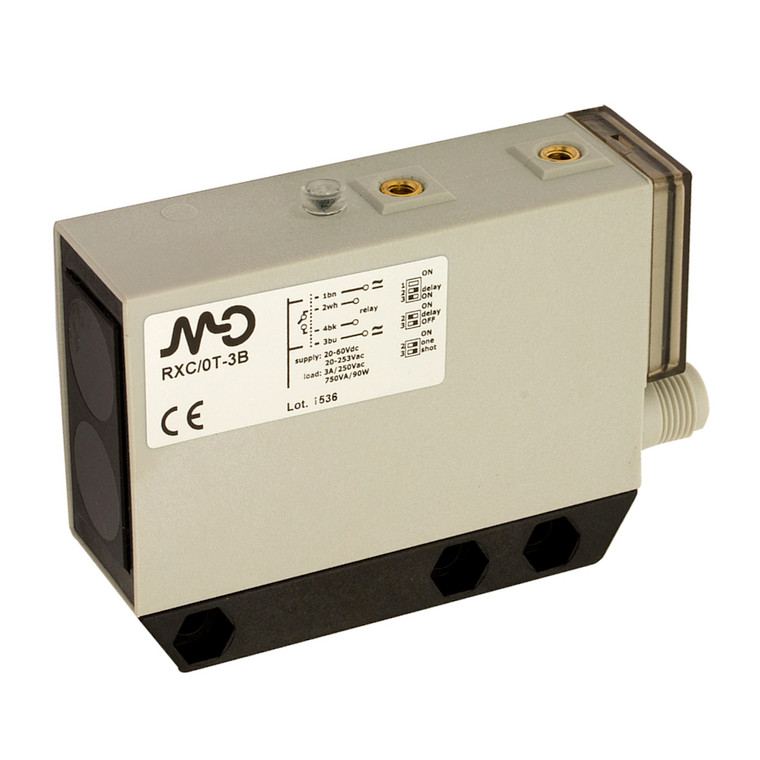

Datasensing RXC/0T-3B Sensors

The Datasensing RXC/0T-3B Sensors are designed for high-performance photoelectric sensing with a retroreflective function, capable of detecting objects up to 12 meters away. These sensors feature a compact design with versatile installation options, including diffuse reflection, polarized, through-beam, and background suppression models. Equipped with a relay output or multifunctional DECOUT®, they offer a timer function with delay on, delay off, and one-shot capabilities, along with a trimmer for sensitivity adjustment. The sensors include a switch to reduce emission for precise detection in through-beam types and boast a 360° visible LED alignment indicator with two LED indicators for stable signal and output status. The M12 standard plug cable exit and axial and right-angle brackets ensure easy installation. With a nominal sensing distance of 12m and a thermal drift of 10% Sr, these sensors provide a repeat accuracy of 5%. They operate on a wide voltage range of 20...60VDC /20...253VAC/50-60Hz, with a no-load supply current of ? 25mARMS and a load current capacity of 3A-250Vac/3A-30Vdc (750VA/90W). The sensors are equipped with reverse polarity and impulsive overvoltage protection, ensuring reliable performance even in challenging environments. The housing is made of durable PC material, with an active head of PMMA, and is designed to withstand operating temperatures from -25°C to +70°C without freezing. The sensors are CE approved, EMC compatible with EN 60947-5-2 standards, and offer IP65 mechanical protection against dust and water ingress. Supplied with an ST81 mounting bracket and screws, these sensors are ready for immediate installation and use.
