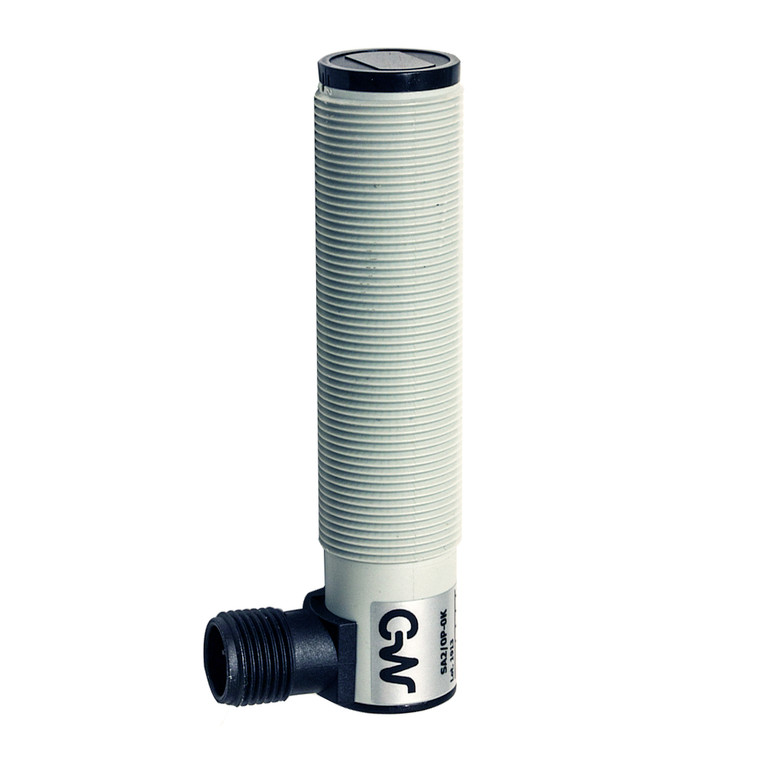

Datasensing SA2/0P-0K Sensors
Datasensing
$139.34
The Datasensing SA2/0P-0K Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 150mm, these sensors are ideal for short-distance applications. The sensitivity can be easily adjusted using the built-in trimmer, ensuring optimal performance in various environments. Equipped with a double LED indicator, users can quickly assess the sensor's status and power supply. The sensors offer a selectable NO/NC output and are protected against electrical damage with IP65 and IP67 protection degrees, making them suitable for harsh conditions.
With a high switching frequency of 1kHz and a rapid response time of 500µs, these sensors are perfect for fast-paced industrial settings. They operate within a voltage range of 10 to 30VDC, with minimal power consumption and a low output voltage drop. The robust housing made of PBT and nylon, along with the PMMA active head material, ensures durability and longevity. The sensors are designed to withstand extreme temperatures from -25°C to +70°C and are resistant to shocks and vibrations as per IEC standards.
The SA2/0P-0K Sensors come with an M12 plug connection at a 90° angle, providing flexibility in installation. They are compatible with a wide range of plugs, accessories, and reflectors, enhancing their versatility. Approved by CE and compliant with EMC standards, these sensors are a reliable choice for various industrial applications.
- Nominal sensing distance:
- 150mm
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
