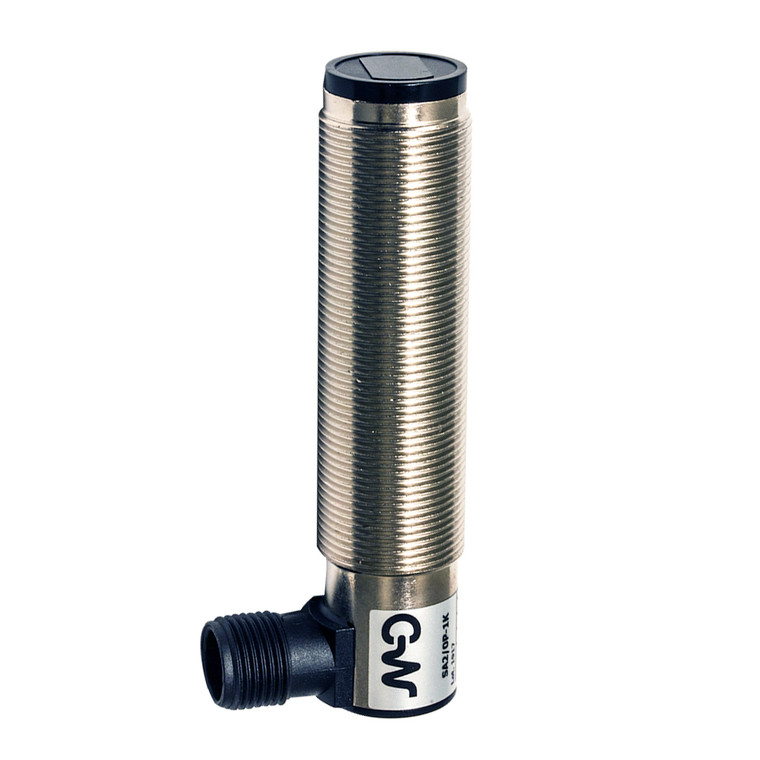

Datasensing SA2/0P-1K Sensors
Datasensing
$157.58
The Datasensing SA2/0P-1K Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 150mm, these sensors are ideal for short-distance applications. The robust design includes a sensitivity adjustment trimmer, allowing for fine-tuning to suit specific needs. With a double LED indicator for power and status output, users can easily monitor the sensor's operation. The sensors offer a selectable NO/NC output and are protected against electrical damage with IP65 and IP67 protection degrees, ensuring durability in various environments.
Engineered with a PNP L/D selectable output function, the SA2/0P-1K Sensors boast a high switching frequency of 1kHz and a rapid response time of 500µs. They operate efficiently within a voltage range of 10 to 30VDC, with minimal power consumption. The sensors are equipped with short-circuit and reverse polarity protection, enhancing their reliability and safety.
Constructed from nickel-plated brass with a nylon plug, the sensors are built to withstand harsh conditions, with an operating temperature range of -25°C to +70°C. The M12 plug connection and compact dimensions (21.4mm x 90mm) make installation straightforward. Additionally, the sensors are CE approved and comply with EMC standards, ensuring compatibility and performance in industrial settings. Supplied with M18 x 1 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 150mm
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel-plated brass / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
