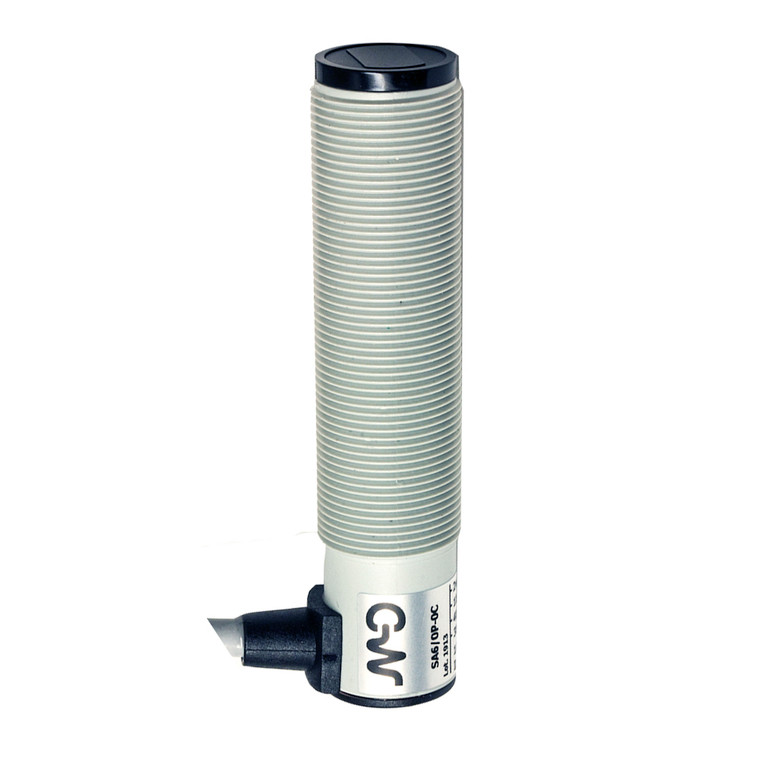

Datasensing SA6/0N-0C86 Sensors

The Datasensing SA6/0N-0C86 Sensors are high-performance photoelectric sensors designed for precise detection tasks. Featuring a nominal sensing distance of 400mm, these sensors utilize a diffuse reflection principle, making them ideal for medium-distance applications up to 600mm. The sensor's sensitivity can be finely adjusted using a trimmer, ensuring optimal performance in various environments. Equipped with an NPN output type that is L/D selectable, the SA6/0N-0C86 offers a switching frequency of 1kHz and a rapid response time of 500µs, making it suitable for fast-paced industrial settings. The sensor operates within a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current capacity of ?100mA. It features robust protection mechanisms, including short-circuit and reverse polarity protection, ensuring reliable operation. Constructed with a durable PBT housing and a PMMA active head, the sensor is designed to withstand harsh conditions, with an IP67 mechanical protection rating. It is resistant to shocks and vibrations as per IEC standards, and its EMC compatibility is certified under EN 60947-5-2. The sensor is equipped with LED indicators for power and status output, providing clear visual feedback. The SA6/0N-0C86 comes with a 5-meter PVC cable with a 90° exit, facilitating easy installation and connectivity. It is supplied with M18 x 1 nuts for secure mounting. With a compact design measuring 21.4mm x 89.8mm, this sensor is an excellent choice for applications requiring reliable and accurate sensing capabilities.
