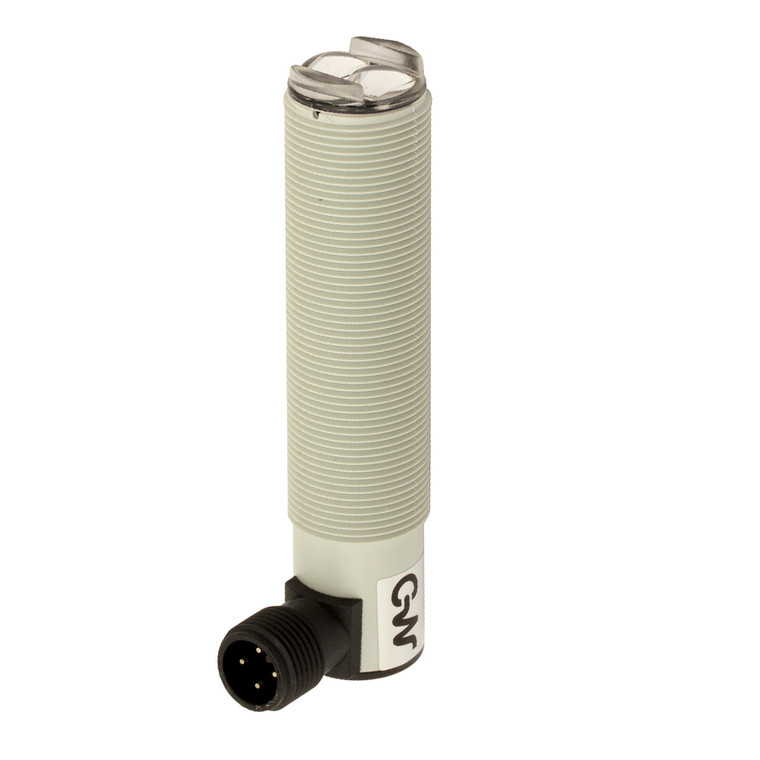

Datasensing SA6/0P-1KDA Sensors
Datasensing
$182.62
The Datasensing SA6/0P-1KDA Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 400mm, these sensors are ideal for medium-distance applications up to 600mm. The sensor's PNP output is L/D selectable, providing flexibility in various operational settings. With a robust nickel-plated brass housing and a PMMA active head, the sensor ensures durability and resistance to harsh environments, meeting IP67 mechanical protection standards.
Equipped with a trimmer for sensitivity adjustment, the SA6/0P-1KDA offers a repeat accuracy of 5% and a thermal drift of Sr at 10%. The sensor operates efficiently within a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current of ?100mA. It features a fast switching frequency of 1kHz and a response time of 500µs, making it suitable for high-speed applications.
The sensor includes LED indicators for power and status output, ensuring easy monitoring. It is protected against short circuits and reverse polarity, enhancing its reliability. The M12 plug connection at a 90° angle facilitates easy installation, while the supplied M18 x 1 nuts ensure secure mounting. The sensor is compliant with CE and EMC standards, and it withstands shocks and vibrations as per IEC standards. Operating effectively in temperatures ranging from -25°C to +70°C, the SA6/0P-1KDA is a versatile solution for various industrial applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Housing Material:
- Nickel-plated brass / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- Nuts M18 x 1
- Dimensions:
- 21,4mmx90mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
