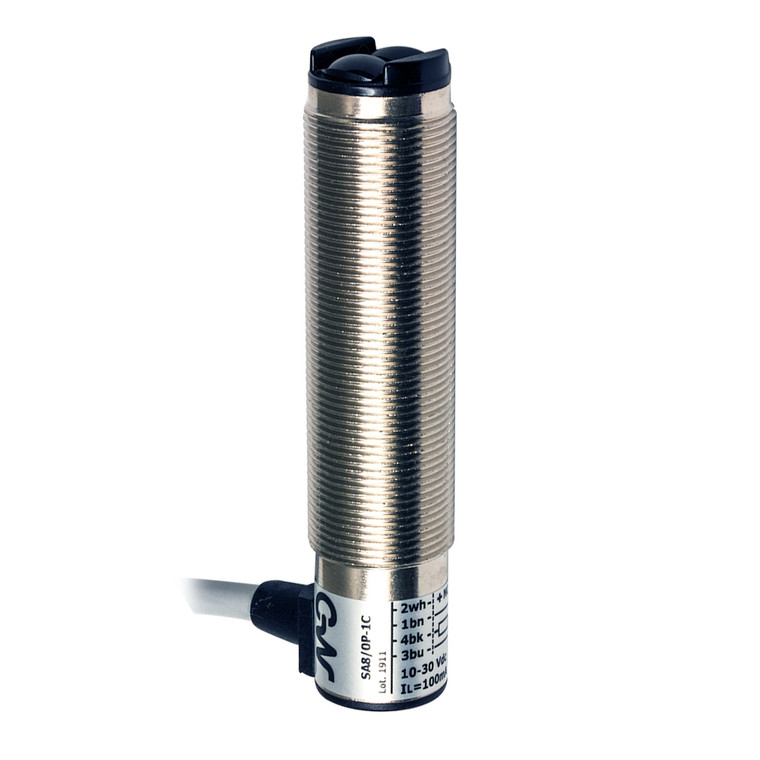

Datasensing SA8/0N-1C Sensors
Datasensing
$209.64
The Datasensing SA8/0N-1C Sensors are advanced photoelectric sensors designed for precise and reliable detection. With a nominal sensing distance of 1 meter, these sensors utilize diffuse reflection for long-distance detection, making them ideal for various industrial applications. The sensors feature a sensitivity adjustment trimmer, allowing for fine-tuning to suit specific needs. Equipped with a double LED indicator, they provide clear status updates with green for power ON and yellow for status output.
These sensors offer a selectable NO/NC output and are protected against electrical damage with IP65 protection. They are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and a robust housing made of nickel-plated brass and nylon. The sensors are equipped with a 2-meter PVC cable with a 90° exit for easy installation.
The SA8/0N-1C Sensors are engineered for high performance, featuring a switching frequency of 1kHz and a response time of 500µs. They operate on a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA. The sensors are equipped with short-circuit and reverse polarity protection, ensuring durability and reliability.
With approvals from CE and EMC compatibility with EN 60947-5-2, these sensors meet high standards of quality and safety. They are supplied with M18 x 1 nuts for secure mounting and are compatible with a wide range of plugs, accessories, and reflectors. The Datasensing SA8/0N-1C Sensors are the perfect choice for applications requiring precise and dependable photoelectric sensing solutions.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 140g
- Housing Material:
- Nickel-plated brass / Nylon cable exit
- Connections:
- 2m PVC cable 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
