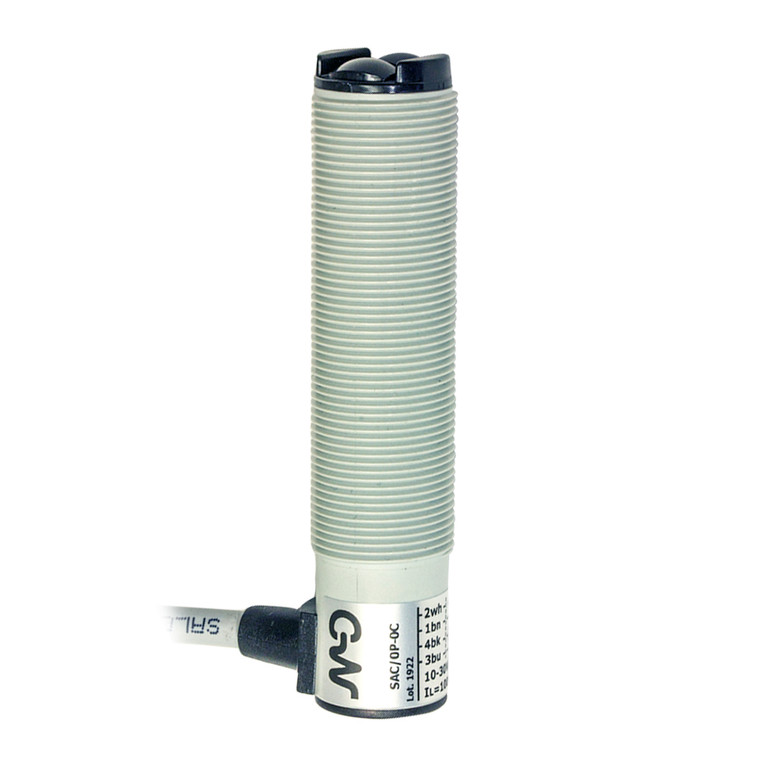

Datasensing SA8/0P-0C Sensors
Datasensing
$191.29
The Datasensing SA8/0P-0C Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 1 meter, these sensors are ideal for long-distance applications exceeding 600mm. The sensors come equipped with a sensitivity adjustment trimmer, allowing for fine-tuning to suit specific needs. With a robust IP65 protection degree, they are safeguarded against electrical damage and environmental factors.
The sensors offer a selectable NO/NC output and are equipped with a double LED indicator for easy status monitoring. They operate on a PNP output type with a selectable light/dark function, ensuring versatility in various applications. The sensors boast a high switching frequency of 1kHz and a rapid response time of 500µs, making them suitable for fast-paced environments.
Constructed with durable PBT housing and a PMMA active head, the sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C. The 2-meter PVC cable with a 90° exit provides flexibility in installation. Additionally, the sensors are CE approved and EMC compatible, ensuring compliance with industry standards.
With features like short-circuit and reverse polarity protection, as well as resistance to external light interference, the Datasensing SA8/0P-0C Sensors deliver reliable performance in diverse settings. The package includes M18 x 1 nuts for secure mounting, making these sensors a comprehensive solution for your detection needs.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 75g
- Housing Material:
- PBT / Nylon cable exit
- Connections:
- 2m PVC cable 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
