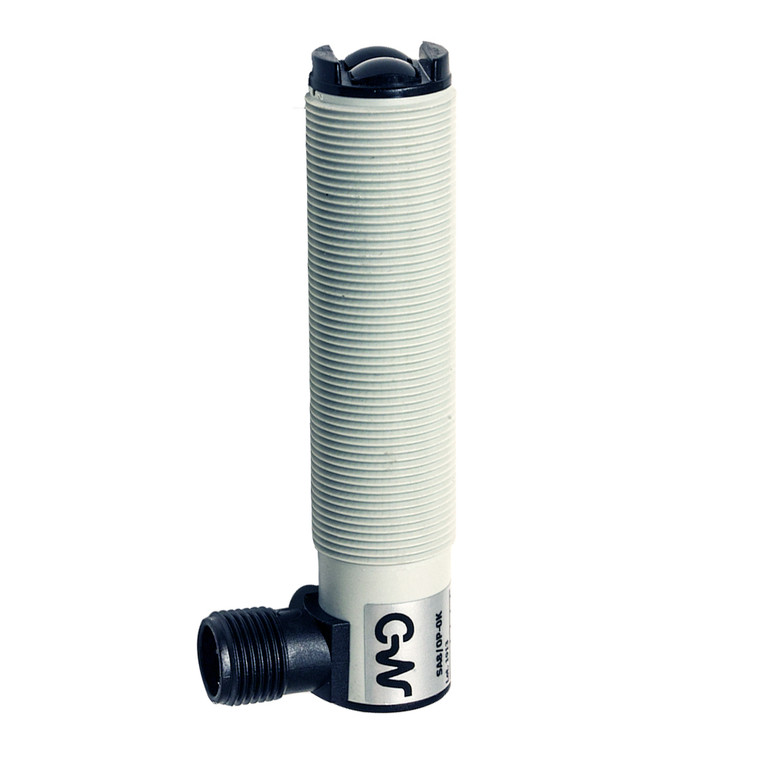

Datasensing SAC/0N-0K Sensors
Datasensing
$142.30
The Datasensing SAC/0N-0K Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a retroreflective function with a nominal sensing distance of 6 meters, these sensors are equipped with a sensitivity adjustment trimmer for optimal performance. The robust design includes a double LED indicator for power and status output, and offers NO/NC selectable output options. With an IP65 protection degree, these sensors are safeguarded against electrical damage and are suitable for various industrial environments.
The SAC/0N-0K Sensors boast a high switching frequency of 1kHz and a rapid response time of 500µs, ensuring quick and accurate detection. They operate within a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA. The sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and protection against short-circuits and reverse polarity.
Constructed with durable PBT housing and a PMMA active head, these sensors are built to last. They feature an M12 plug connection at a 90° angle and come with supplied accessories, including M18 x 1 nuts. The sensors are CE approved and comply with EMC compatibility standards EN 60947-5-2, ensuring they meet rigorous safety and performance criteria. Ideal for applications requiring reliable photoelectric sensing, the Datasensing SAC/0N-0K Sensors deliver exceptional performance and versatility.
- Nominal sensing distance:
- 6m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retroreflex
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
