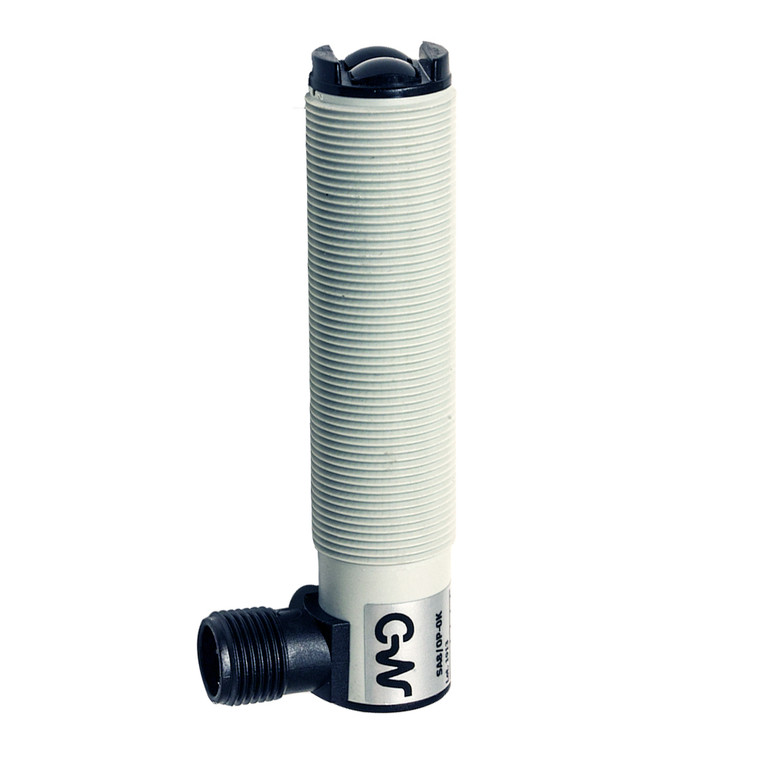

Datasensing SAC/0P-0K Sensors
Datasensing
$142.30
The Datasensing SAC/0P-0K Sensors are advanced photoelectric sensors designed for reliable and precise detection. Featuring a retroreflective function with a nominal sensing distance of 6 meters, these sensors are equipped with a PNP output type and a selectable light/dark function. The robust design includes a plastic construction with an M12 90° connector, ensuring durability and ease of installation.
These sensors offer a wide range of models, including diffuse, retro-reflective, polarized, and fixed-focus options, all with a sensitivity adjustment trimmer for tailored performance. The double LED indicator provides clear status updates with green for power ON and yellow for status output. With a high switching frequency of 1kHz and a rapid response time of 500µs, these sensors are ideal for fast-paced environments.
Engineered for resilience, the SAC/0P-0K Sensors boast IP65 and IP67 protection degrees, complete protection against electrical damage, and approvals from CE. They are designed to withstand harsh conditions with an operating temperature range of -25°C to +70°C and are resistant to shocks and vibrations as per IEC standards.
The sensors are compatible with a wide range of plugs, accessories, and reflectors, making them versatile for various applications. With features like short-circuit and reverse polarity protection, these sensors ensure safe and efficient operation. The housing is made from durable PBT with a PMMA active head, and the sensors are supplied with M18 x 1 nuts for secure mounting.
- Nominal sensing distance:
- 6m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retroreflex
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
