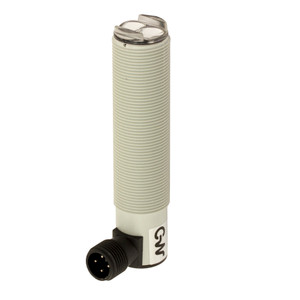

Datasensing SAP/0N-0K Sensors
Datasensing
$166.78
The Datasensing SAP/0N-0K Sensors are advanced photoelectric sensors designed for precision and reliability. With a nominal sensing distance of 3 meters, these sensors feature a polarized function principle and an NPN L/D selectable output type, making them versatile for various applications. The sensors are equipped with a sensitivity adjustment trimmer, allowing for fine-tuning to meet specific needs. They boast a high switching frequency of 1kHz and a rapid response time of 500µs, ensuring quick and accurate detection.
Built to withstand challenging environments, the sensors have an IP67 protection degree, offering complete protection against dust and water ingress. They are also equipped with short-circuit and reverse polarity protection, enhancing their durability and longevity. The double LED indicators provide clear status updates, with a green LED for power ON and a yellow LED for status output.
The sensors are designed with a robust PBT housing and a PMMA active head material, ensuring they can endure shocks and vibrations as per IEC standards. They operate efficiently within a temperature range of -25°C to +70°C, making them suitable for various industrial settings. The M12 plug connection and supplied M18 x 1 nuts facilitate easy installation and secure mounting.
With approvals from CE and EMC compatibility with EN 60947-5-2, the Datasensing SAP/0N-0K Sensors are a reliable choice for those seeking high-performance photoelectric sensors with comprehensive protection features and adaptability to diverse operational requirements.
- Nominal sensing distance:
- 3m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
