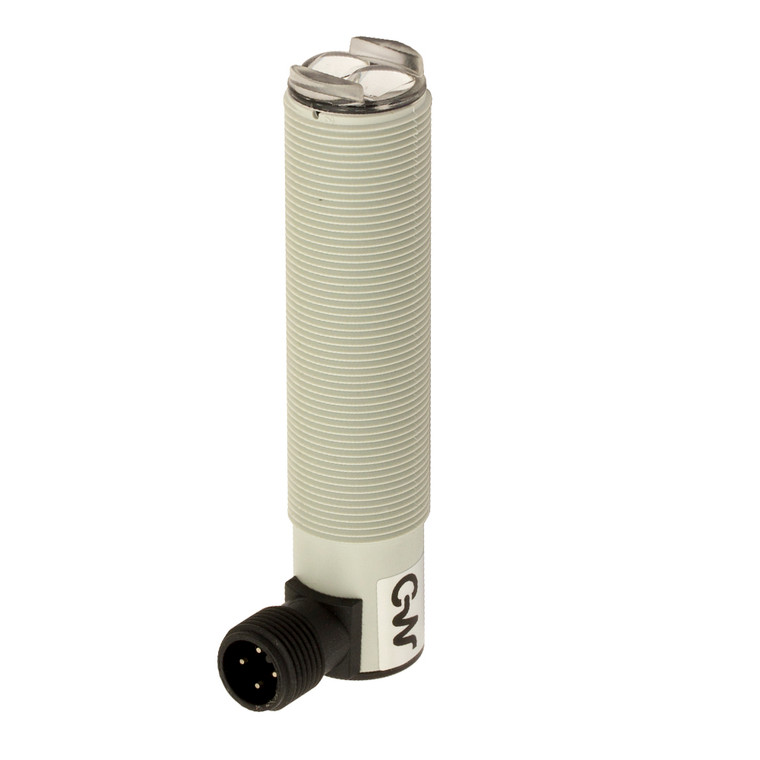

Datasensing SAT/0P-0K Sensors
Datasensing
$152.73
The Datasensing SAT/0P-0K Sensors are designed for precision and reliability in various industrial applications. These photoelectric sensors feature a diffuse reflection principle, ideal for short-distance detection up to 200mm, with a nominal sensing distance of 12mm. Equipped with a sensitivity adjustment trimmer, they offer customizable performance to suit specific needs. The sensors boast a robust IP67 protection rating, ensuring durability against dust and water ingress, and are built with a PBT/Nylon housing for enhanced mechanical protection.
With a double LED indicator system, users can easily monitor power and status output, while the NO/NC selectable output provides flexibility in integration. The sensors operate efficiently within a wide voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA. They are equipped with essential safety features, including short-circuit and reverse polarity protection, ensuring reliable operation in demanding environments.
The SAT/0P-0K Sensors are compatible with a variety of plugs, accessories, and reflectors, making them versatile for different setups. They are CE approved and meet EMC compatibility standards, ensuring compliance with industry regulations. With a compact design measuring 21.4mm x 89.8mm and a lightweight build of 40g, these sensors are easy to install and maintain, making them an excellent choice for enhancing automation and efficiency in your operations.
- Nominal sensing distance:
- 12mm
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
