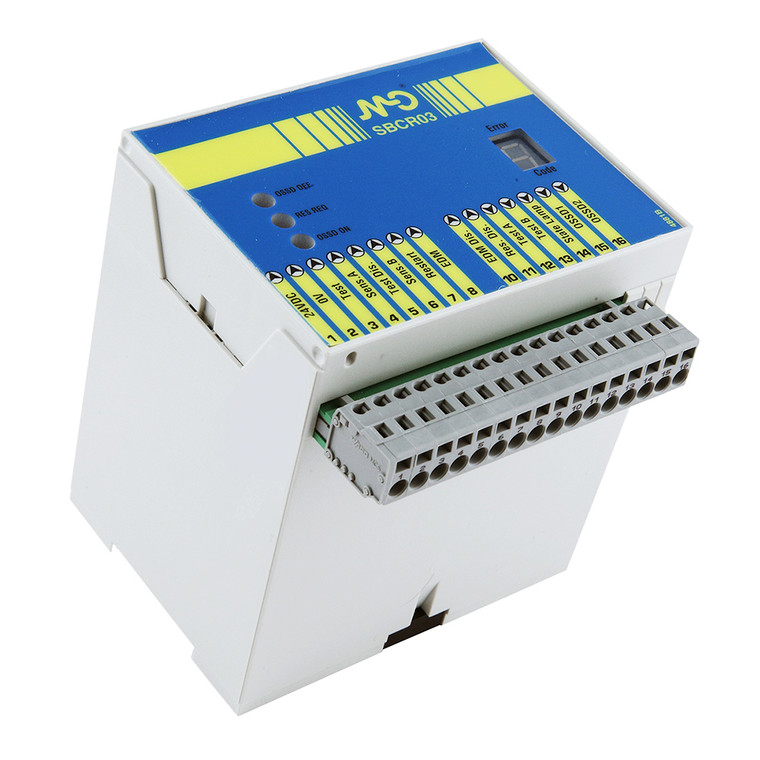

Datasensing SBCR03/S-A0 Control Unit without muting 24VDC
Datasensing
$553.25
The Datasensing SBCR03/S-A0 Control Unit is a robust and reliable safety control solution designed for industrial environments. This Type 2 safety control unit operates at 24VDC and is engineered without muting, ensuring seamless integration into safety systems. It supports up to six sets of safety photocells, either M18 (SH4-IA) or M30 (TH6-IA), allowing for flexible configuration to meet specific safety requirements. The unit is designed for DIN RAIL mounting, providing easy installation and maintenance.
With a focus on body protection and access control, the SBCR03/S-A0 adheres to Cat. 2 standards according to EN 61496-1 and offers performance level c (PL c) as per EN ISO 13849-1, with a SIL CL 1 rating according to EN 62061 / IEC 61508. The control unit features models with single or double channel muting and override functions, ensuring adaptability to various operational needs. It boasts a rapid response time of less than 5 ms and includes 2 OSSD outputs for reliable safety signal transmission.
The unit's nominal sensing distance is determined by the sensors used, with SH4/*-**IA models reaching up to 10m and TH6/*-*IA models extending up to 60m. It offers manual or automatic restart options and includes an EDM function for enhanced safety management. The compact design, with dimensions of 99 x 105 x 100mm, is constructed from durable ABS UL VO material, ensuring longevity and resilience in demanding conditions.
Operating within a temperature range of 20°C to +60°C and a humidity range of 15% to 95% (non-condensing), the SBCR03/S-A0 is built to withstand various environmental conditions. It is CE and TÜV approved, with an IP20 degree of protection, making it a dependable choice for safeguarding industrial operations.
- Nominal sensing distance:
- According to the sensors used: SH4/*-**IA up to 10m TH6/*-*IA up to 60m
- Effective Aperture Angle:
- n/a
- Function Principle:
- Control unit
- Available functions:
- Manual/Automatic Restart, EDM
- Description:
- Compact standard
- Max. number of sensors connected:
- 6 x SH4_IA/TH6_IA pairs
- State lamp output:
- 1 x incandescent lamp (1 10W, 24Vdc)
- Functions:
- Safety Control Unit + muting
- Type:
- Type 2 safety control unit (A/M)
- SIL:
- 1
- SILCL:
- 1
- PL:
- c
- PFHd:
- 1,00E-06
- MTTFd:
- 20 years
- Output type:
- 2 x PNP-NO (OSSD safety output) with EDM
- Response time:
- ? 12 ms
- Response Time (Test imput):
- ? 30ms
- Tempo di Risposta (Muting function):
- ? 270ms
- Recovery time:
- ? 50ms
- Operating Voltage:
- 24 Vdc ± 20%
- No-Load supply current:
- 100mA
- Load current:
- ? 500mA each output
- Output voltage drop:
- 2,5V @ 500mA
- Cabel Length (Power Supply/Output):
- ? 30m (cable section 0,5mm2) ? 60m (cable section 2,5mm2)
- Cable Length (sensors):
- ? 100m (cable section 2mm2)
- Ripple:
- ? 5%
- Power Consumption:
- 4W (without lamps/loads)
- Housing Material:
- ABS UL VO
- Connections:
- 1 x terminals bar
- Operating temperature:
- 20°C +60°C (without freeze)
- Storage temperature:
- -25 + 70°C
- Approvals:
- CE, TÜV
- Degree of protection:
- IP20
- Operating Temperature:
- 20 +60°C (without freeze)
- Mechanical Protection:
- IP20
