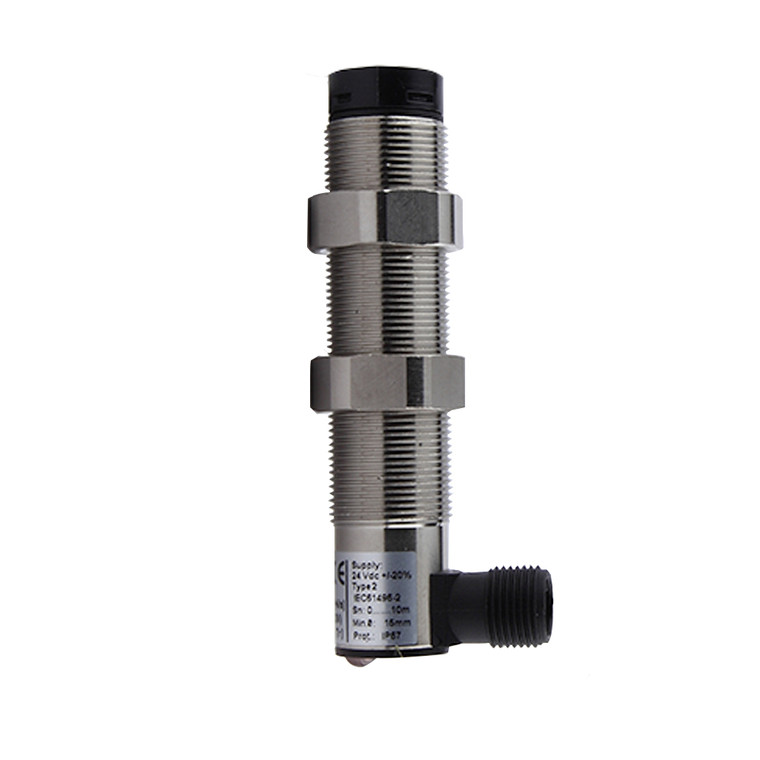

Datasensing SH2/E-0KIC Sensors
Datasensing
$100.01
The Datasensing SH2/E-0KIC Sensors are designed for optimal safety and efficiency in industrial environments. These M18 Type 2 safety photocell emitters feature a nominal sensing distance of 10 meters with an axial optic, ensuring precise detection capabilities. Constructed with a durable PBT plastic housing and glass active head material, these sensors are built to withstand harsh conditions, offering an IP67 degree of protection.
Equipped with LED indicators, the sensors provide clear status updates with a yellow light for power and red for emission. They operate within a voltage range of 10 to 30 Vdc, with a no-load supply current of ? 25mA, and are compliant with IEC61131-2 standards, making them adaptable with any safety module. The sensors are designed to be used with an external safety control unit that includes an automatic optics test function, ensuring compliance with EN ISO 13849 safety standards.
With a thermal drift of Sr ? 10% and an effective aperture angle of ? ±5°, these sensors offer reliable performance. They are approved by CE and TÜV, and can operate in temperatures ranging from -20°C to +55°C, with a storage temperature range of -40°C to +75°C. The sensors are also resistant to shocks and vibrations, adhering to IEC60068-2-29 and IEC60068-2-6 standards. Supplied with two nuts for easy installation, the Datasensing SH2/E-0KIC Sensors are an ideal choice for enhancing safety in your industrial applications.
- Nominal sensing distance:
- 10m (ExG=4)
- Thermal drift of Sr:
- ? 10%
- Resolution:
- Single-beam
- controlled height:
- Single-beam
- Effective Aperture Angle:
- ? ±5°
- Effective Aperture Angle:
- Typical ±1,8°
- Function Principle:
- Emitter
- Notes:
- not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function
- Description:
- M18 Type 2 Safety Photocell Emitter
- Type:
- Type 2 safety photocell
- SIL:
- 1
- SILCL:
- 1
- PL:
- c
- PFHd:
- 1,00E-06
- MTTFd:
- 20 years
- Operating Voltage:
- 10 30 Vdc
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ? 5 Vpp
- LED indicators:
- Yellow (power)
- Emission:
- Red
- Test levels:
- <5V emission inactive >15V emission active
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Operating temperature:
- -20°C +55°C
- Storage temperature:
- -40°C +75°C
- Approvals:
- CE, TÜV
- Shocks and vibrations:
- 10g - 16ms (according to IEC600068-2-29) 10Hz 55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x nuts
- Operating Temperature:
- -20 +55°C (Without freeze)
- Mechanical Protection:
- IP67
