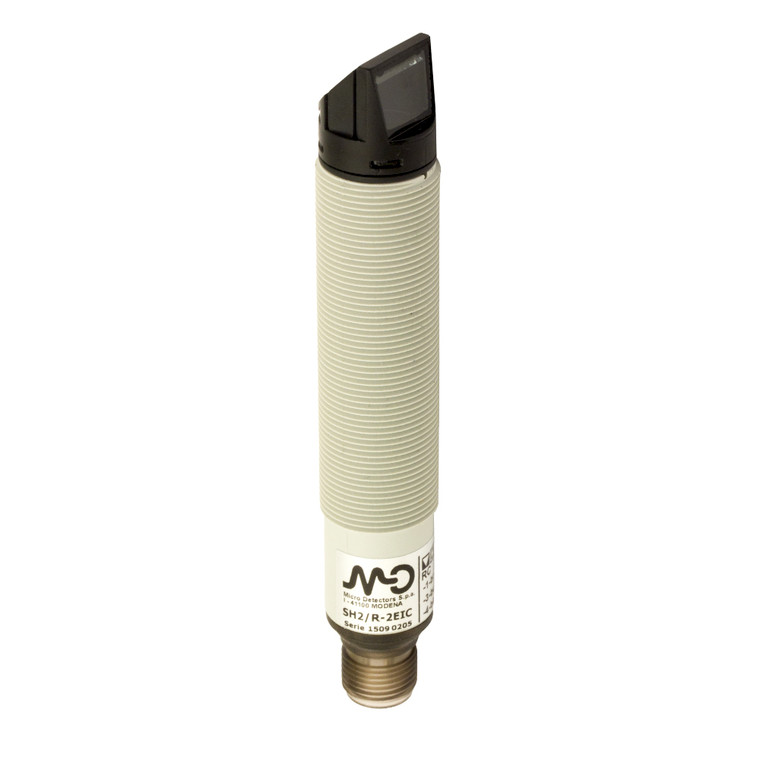

The Datasensing SH2/E-2EIC Sensors are designed for optimal safety and efficiency, featuring a Type 2 safety photocell emitter with a nominal sensing distance of 5 meters. These sensors are equipped with a radial optic and a 90° M12 connection, ensuring seamless integration into various safety systems. Compliant with EN50100 Category 2 and Category 4, they are ideal for use with external safety control units that have an automatic optics test function, excluding the SBCR03 control unit.
The sensors operate at a frequency of 123 kHz and are IEC61131-2 compliant, making them adaptable with any safety module. They boast a robust PBT plastic housing with an IP67 degree of protection, ensuring durability in harsh environments. The sensors are equipped with LED indicators for easy status monitoring, with a yellow LED indicating power and a red LED for emission.
With a thermal drift of Sr ? 10% and an effective aperture angle of ? ±5°, these sensors provide precise and reliable performance. They operate within a voltage range of 10 to 30 Vdc, with a no-load supply current of ? 25mA and a maximum ripple content of ? 5 Vpp. The sensors are designed to withstand shocks and vibrations, adhering to IEC600068-2-29 and 60068-2-6 standards.
Supplied with two nuts for easy installation, the Datasensing SH2/E-2EIC Sensors are CE and TÜV approved, ensuring compliance with international safety standards. They are suitable for operating temperatures between -20°C and +55°C and can be stored in temperatures ranging from -40°C to +75°C, with a humidity tolerance of 15% to 95%.
- Nominal sensing distance:
- 5m (ExG=2)
- Thermal drift of Sr:
- ? 10%
- Resolution:
- Single-beam
- controlled height:
- Single-beam
- Effective Aperture Angle:
- ? ±5°
- Effective Aperture Angle:
- Typical ±1,8°
- Function Principle:
- Emitter
- Notes:
- not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function
- Description:
- M18 Type 2 Safety Photocell Emitter
- Type:
- Type 2 safety photocell
- SIL:
- 1
- SILCL:
- 1
- PL:
- c
- PFHd:
- 1,00E-06
- MTTFd:
- 20 years
- Operating Voltage:
- 10 30 Vdc
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ? 5 Vpp
- LED indicators:
- Yellow (power)
- Emission:
- Red
- Test levels:
- <5V emission inactive >15V emission active
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Operating temperature:
- -20°C +55°C
- Storage temperature:
- -40°C +75°C
- Approvals:
- CE, TÜV
- Shocks and vibrations:
- 10g - 16ms (according to IEC600068-2-29) 10Hz 55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x nuts
- Operating Temperature:
- -20 +55°C (Without freeze)
- Mechanical Protection:
- IP67
