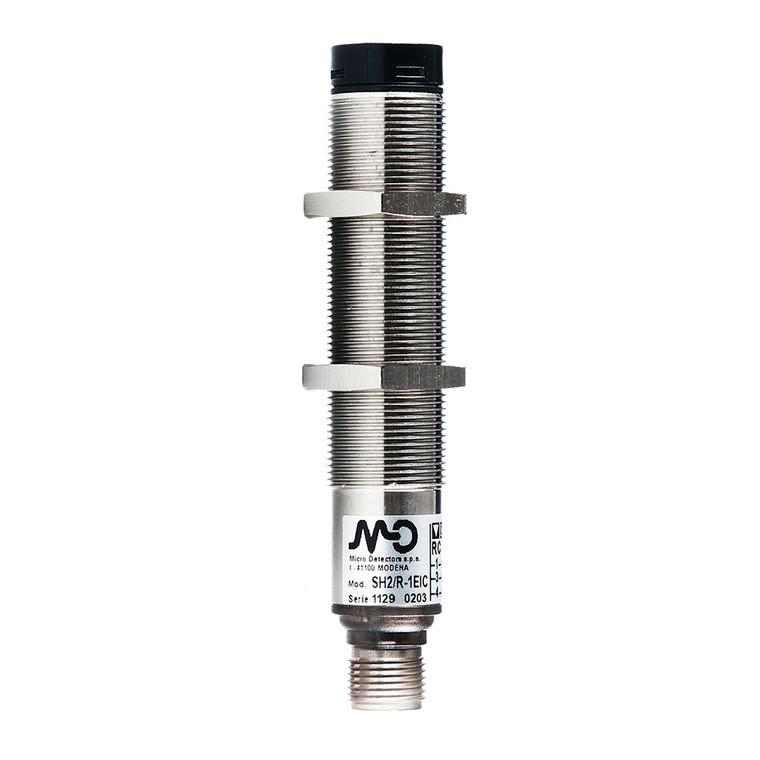

Datasensing SH2/R-1EIC Sensors
Datasensing
$129.95
The Datasensing SH2/R-1EIC Sensors are advanced safety sensor receivers designed for optimal performance and reliability. Featuring a robust M18 metal housing with an axial connection, these sensors offer a nominal sensing distance of 10 meters, making them ideal for various industrial applications. The sensors are equipped with LED indicators for easy alignment and are compliant with IEC61131-2 standards, ensuring seamless integration with any safety module. With a single-beam resolution and an effective aperture angle of ? ±5°, these sensors provide precise detection capabilities.
The SH2/R-1EIC Sensors operate within a voltage range of 10 to 30 Vdc, with a no-load supply current of ? 25mA and a load current of ? 70mA. They feature a totem-pole output type, with a response time of 200µs for light/dark transitions and 400µs for dark/light transitions. The sensors are designed to withstand harsh environments, with an operating temperature range of -20°C to +55°C and a degree of protection rated at IP67.
These sensors are approved by CE and TÜV, ensuring high safety and quality standards. They are not compatible with the SBCR03 control unit and should be used with an external safety control unit featuring an automatic optics test function. The package includes two nuts for easy installation. With a mechanical protection rating of IP67, the SH2/R-1EIC Sensors are built to endure shocks and vibrations, making them a reliable choice for safety-critical applications.
- Nominal sensing distance:
- 10m (ExG=4)
- Thermal drift of Sr:
- ? 10%
- Resolution:
- Single-beam
- controlled height:
- Single-beam
- Effective Aperture Angle:
- ? ±5°
- Effective Aperture Angle:
- Typical ±1,8°
- Function Principle:
- Receiver
- Notes:
- not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function
- Description:
- M18 Type 2 Safety Photocell Receiver
- Type:
- Type 2 safety photocell
- SIL:
- 1
- SILCL:
- 1
- PL:
- c
- PFHd:
- 1,00E-06
- MTTFd:
- 20 years
- Output type:
- Totem-pole
- Resposnse time for light/dark transition:
- 200µs
- Resposnse time for dark/light transition:
- 400µs
- Operating Voltage:
- 10 30 Vdc
- No-Load supply current:
- ? 25mA
- Load current:
- ? 70mA
- Output voltage drop:
- 2,5V @ 50mA
- Max ripple content:
- ? 5 Vpp
- LED indicators:
- Yellow (alignement)
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Operating temperature:
- -20°C +55°C
- Storage temperature:
- -40°C +75°C
- Approvals:
- CE, TÜV
- Shocks and vibrations:
- 10g - 16ms (according to IEC600068-2-29) 10Hz 55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x nuts
- Operating Temperature:
- -20 +55°C (Without freeze)
- Mechanical Protection:
- IP67
