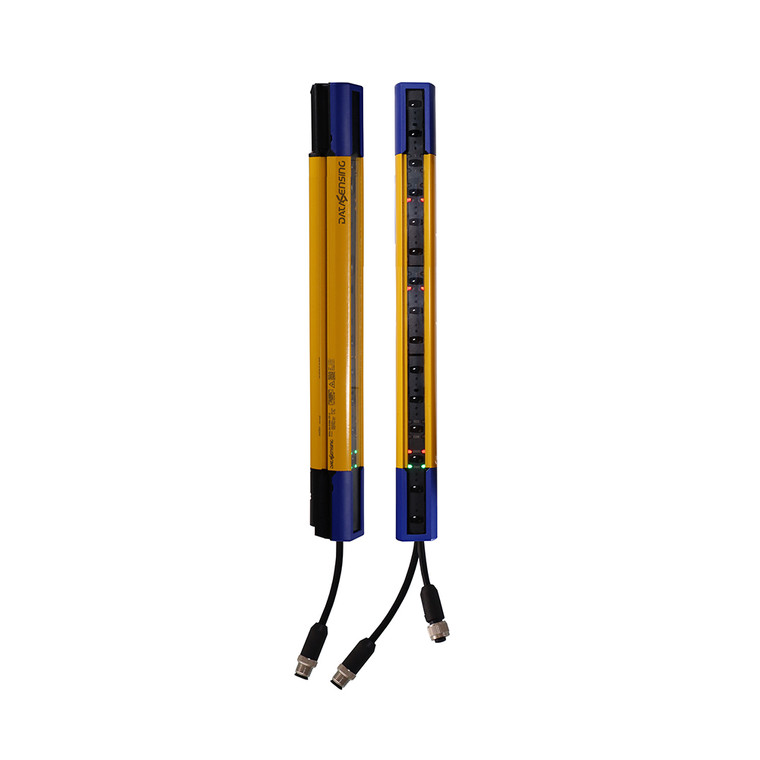

Datasensing SH4-14-1050-SM-8 = SH4 STANDARD MUTING Res=14mm H=1050mm Rec.Connector=8poles

The Datasensing SH4-14-1050-SM-8 is a high-performance Type 4 safety light curtain designed for advanced finger protection with a resolution of 14 mm. It features an extended controlled height of 1050 mm and an impressive operating range of up to 10 meters. This compact device, with dimensions of 35x40x1059 mm, is engineered for seamless integration into various safety applications, offering both manual and automatic restart functions, as well as EDM capabilities. Equipped with standard muting functions, including 2-signals mono and bidirectional muting, override, and partial muting, the SH4-14-1050-SM-8 ensures optimal safety and flexibility. The device is configured using DIP-SW and features optical synchronization with 2 beams, eliminating any dead zones. Its robust construction, made from painted aluminum and MAKROLON AR 7099 Clear PC, ensures durability and reliability, even in harsh environments with operating temperatures ranging from -30 to +55 °C. The SH4-14-1050-SM-8 is IP67 rated for mechanical protection, making it resistant to dust and water ingress. It includes integrated LED muting indication and anti-interference codes to enhance operational efficiency. The package comes complete with a couple and angular bracket, and the device is compatible with muting accessories that include prewired and preinstalled muting sensors. For ease of installation, the device features LEDs that indicate beam intensity, and it can be cascaded with the SH4 CASCADE up to three units. The SH4-14-1050-SM-8 is approved by CE, cULus, TÜV, and UKCA, ensuring compliance with international safety standards. With a nominal sensing distance of 0.2 to 10 meters and a response time of 16 ms, this safety light curtain is an ideal choice for safeguarding personnel and equipment in industrial settings.
