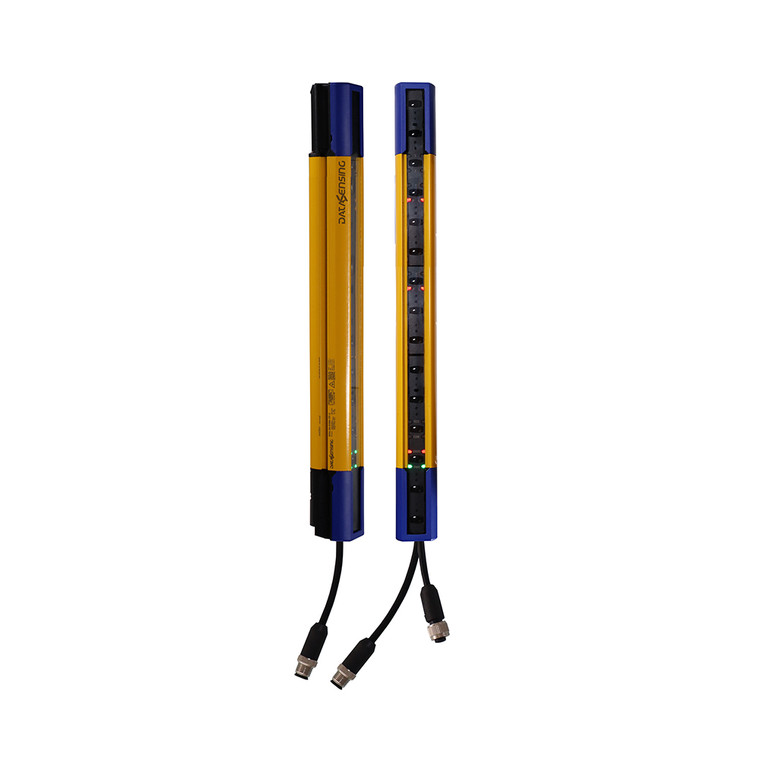

Datasensing SH4-30-0750-A-12-5 = SH4 ADVANCED Res=30mm H=750mm Rec.Connectors=12poles+5 poles

The Datasensing SH4-30-0750-A-12-5 is an advanced safety light curtain designed for optimal hand protection with a resolution of 30 mm and a controlled height of 750 mm. It features an improved operating range of up to 20 meters and offers a variety of standard and advanced functions, including manual and automatic restart, EDM, and multiple muting options such as 2-signals mono and bidirectional muting, partial muting, and dynamic partial muting. The device is equipped with innovative wireless monitoring and configuration capabilities, allowing for easy setup and adjustments via Wi-Fi. The SH4-30-0750-A-12-5 boasts a compact profile of 35 x 40 mm, ensuring seamless integration into various environments. Its installation is simplified by LED indicators that display beam intensity and alignment, further aided by an integrated laser. The light curtain is designed to withstand harsh conditions, with an operating temperature range of -30 to +55 °C and IP67 protection against dust and water ingress. This Type 4 safety light curtain is SIL 3 and PL e certified, ensuring high reliability and safety in industrial applications. It features a zero dead zone, simultaneous muting and blanking, and is cascadable with SH4 CASCADE units for extended coverage. The device includes a complete couple and angular bracket for easy installation and is compatible with muting accessories that come prewired and preinstalled. With a response time of 9 ms and a load current capacity of up to 250mA per output, the SH4-30-0750-A-12-5 is powered by a 24 Vdc supply and offers robust performance with a long MTTFd of 43 years. Its durable construction includes painted aluminum and MAKROLON AR 7099 Clear PC materials, ensuring longevity and resistance to shocks and vibrations. The product is CE, cULus, TÜV, and UKCA approved, meeting stringent safety and EMC compatibility standards.
