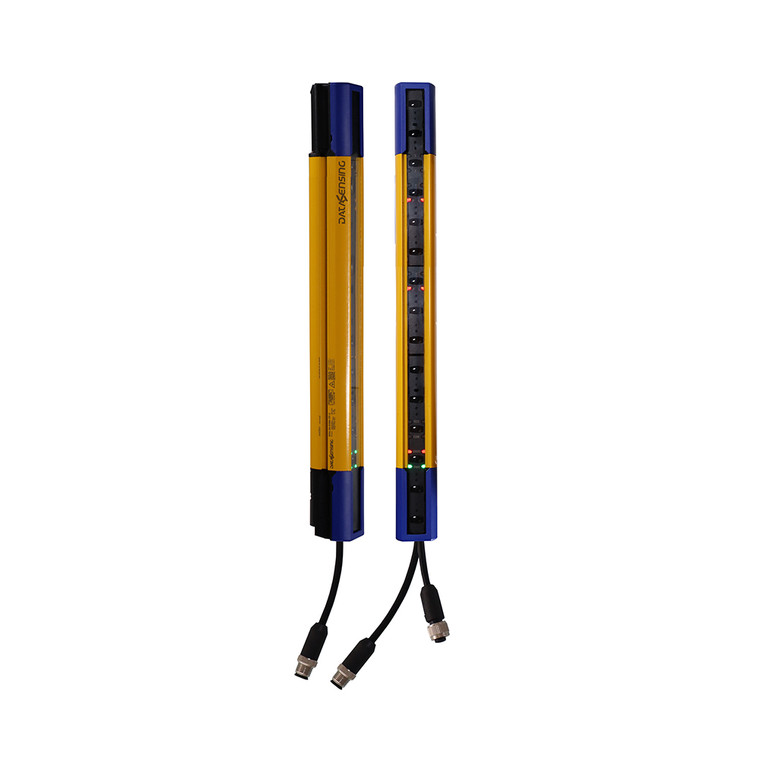

Datasensing SH4-30-0900-A-12-5 = SH4 ADVANCED Res=30mm H=900mm Rec.Connectors=12poles+5 poles

The Datasensing SH4-30-0900-A-12-5 is an advanced safety light curtain designed for optimal hand protection with a resolution of 30 mm and a controlled height of 900 mm. It features an improved operating range of up to 20 meters and offers a variety of basic and advanced functions, including alignment, automatic and manual restart, EDM, and multiple muting options such as 2-signals mono and bidirectional muting, partial muting, and dynamic partial muting. The system is equipped with innovative wireless monitoring and configuration capabilities, allowing for easy setup and management via Wi-Fi. The SH4-30-0900-A-12-5 boasts a compact profile of 35 x 40 mm, ensuring seamless integration into various environments. It is designed with an extended monitored height capability of up to 2250 mm and features optical synchronization with 2 beams, ensuring zero dead zones. The device is protected with an IP67 rating, making it suitable for harsh environments with operating temperatures ranging from -30 to +55 °C. Installation is simplified with integrated LED indications for beam intensity and muting status, as well as an alignment laser. The system includes complete coupling and angular brackets, and is compatible with SH4 CASCADE for cascading up to three units. The product is equipped with M12 connectors and standard non-shielded cables, supporting a nominal sensing distance of 0.2 to 20 meters. Constructed from durable materials such as painted aluminum and MAKROLON AR 7099 Clear PC, the SH4-30-0900-A-12-5 is designed to withstand vibrations and shocks, adhering to rigorous standards. It is approved by CE, cULus, TÜV, and UKCA, ensuring compliance with international safety regulations. The device also features EMC compatibility according to the 2014/30/EU Directive, making it a reliable choice for industrial safety applications.
