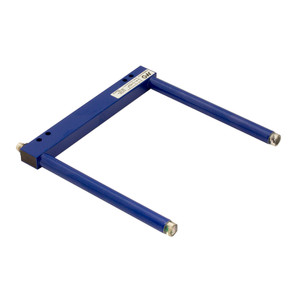

Datasensing SL 030 Mirror for light curtains protected height 310mm
Datasensing
$295.69
The Datasensing SL 030 Mirror is designed for light curtains with a protected height of 310mm, offering seamless integration and enhanced safety. This mirror is equipped with a high-power RED LED emission, ensuring reliable performance with a minimum detectable object size of 0.8mm. Its compact design features a 30mm width and 40mm depth, housed in durable painted aluminum with a polyamide/glass active head material. The device operates efficiently within a temperature range of -10°C to +60°C and is protected against short circuits and reverse polarity. With a switching frequency of 4kHz and a response time of 125µs, it provides quick and accurate detection. The M8 plug with 3 pins ensures easy connectivity, while the yellow LED indicator offers high visibility for status output. This product is CE and UL approved, with EMC compatibility according to EN 60947-5-2 standards, and boasts an IP67 degree of protection, making it suitable for various industrial environments.
- Nominal sensing distance:
- 30mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- NPN Don
- Output Function:
- Don
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 66g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 30mm
- Depth slot detection:
- 40mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
