Datasensing SL 150 Mirror for light curtains prot
Datasensing
$782.87

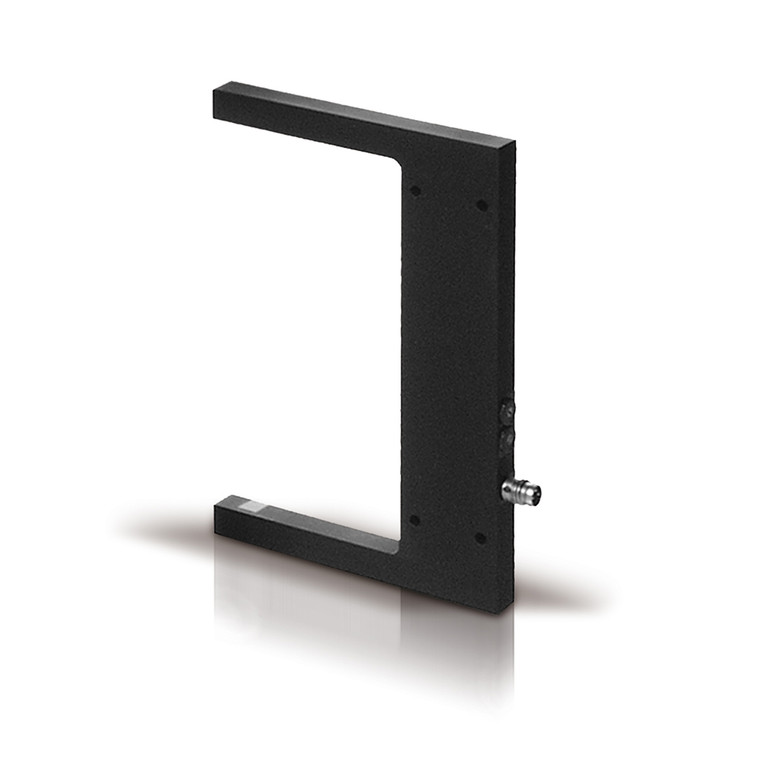

The Datasensing SL 150 Mirror is designed for light curtain protection, offering a robust solution for safeguarding industrial environments. This photoelectric sensor features a wide gap fork design with an 80 mm slot, ideal for small object detection. Equipped with a high-resolution red laser, it ensures precise detection with a nominal sensing distance of 80mm and a minimum detectable object size of 0.1mm. The sensor includes a sensitivity adjustment trimmer and selectable light/dark operation modes, providing flexibility for various applications. Housed in a durable metal casing with glass lenses, it withstands harsh industrial conditions, meeting IP67 mechanical protection standards. The sensor operates efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 20mA and a load current of ? 200mA. It features LED indicators for output and stability, ensuring easy monitoring. The device is compliant with CE and cULus approvals, and its design minimizes interference from external light sources, adhering to EN 60947-5-2: 2020 standards. With a compact size of 10x100x79 mm, it is suitable for environments with limited space, and its M8 plug 4-pin connection ensures easy integration into existing systems. The sensor is built to withstand shocks and vibrations, making it a reliable choice for demanding applications.
- Nominal sensing distance:
- 80mm
- minimum detectable object:
- 0,1mm
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Fork for small object detection
- Description:
- Slim case - fork slot 80x54 mm
- Functions:
- Fork for small object detection
- Output type:
- PNP L/D selectable
- Output Function:
- L/D selectable
- Switching frequency:
- 5kHz
- Response time:
- 0,1
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?200mA
- Output voltage drop:
- ? 3V
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Emission:
- LASER Red
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Housing Material:
- Metal - Gd-Zn / Glass
- Connections:
- M8 plug 4pin
- Storage temperature:
- - 20°C +70°C
- Approvals:
- CE cULus
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
