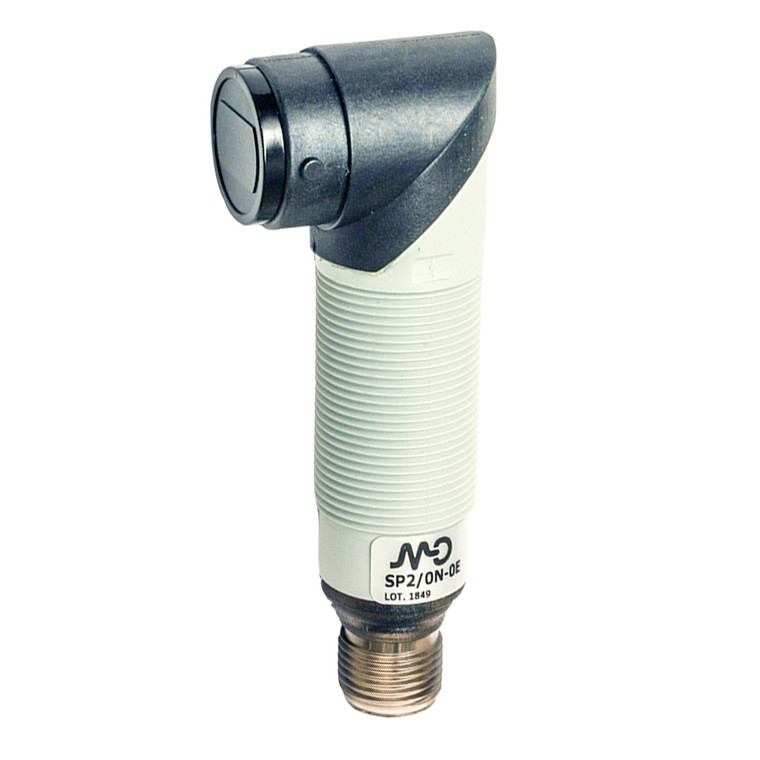

Datasensing SP2/0P-0E Sensors
Datasensing
$94.17
The Datasensing SP2/0P-0E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The models come with side sensitivity adjustment on both axial and right-angle optics, allowing for versatile installation options. The sensors offer a selectable output type (PNP L/D) and are equipped with a yellow LED status indicator for easy monitoring.
Built to withstand harsh environments, the SP2/0P-0E Sensors boast an IP67 protection degree, ensuring complete protection against electrical damages and environmental factors. They are CE and cULus listed, meeting high safety and quality standards. The sensors operate efficiently within a voltage range of 10
30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA.
Designed with user safety in mind, these sensors include short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. The robust housing is made from PBT/PC, with an active head material of PMMA, ensuring durability and longevity. The sensors are compatible with M12 plug connections and come with supplied accessories, including nuts M18 x 1, for easy installation.
With a high switching frequency of 250Hz and a rapid response time of 2ms, the SP2/0P-0E Sensors deliver quick and accurate performance. They are resistant to interference from external light sources, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are suitable for a wide range of industrial applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
