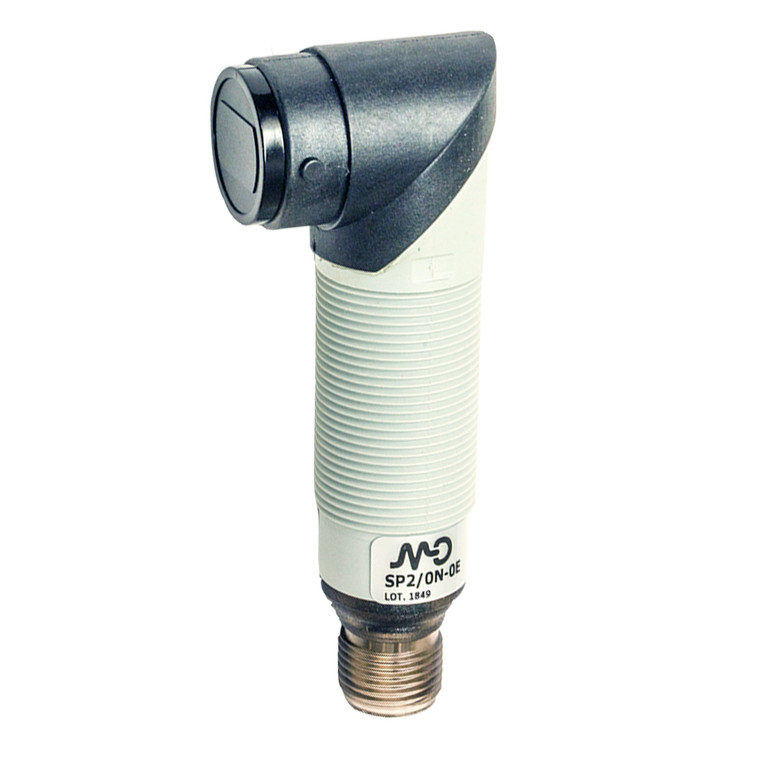

Datasensing SP2/LN-0E Sensors
Datasensing
$94.17
The Datasensing SP2/LN-0E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection principle with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The robust design includes a radial 90° optic position and a durable PBT/PC housing, ensuring longevity and performance in challenging environments. With an IP67 protection rating, these sensors are safeguarded against dust and water ingress, making them suitable for industrial use.
Equipped with an NPN Lon output type, the SP2/LN-0E Sensors offer a selectable LO/DO output function, providing flexibility in various applications. The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate detection. The LED infrared emission at 880nm and LED status indicators enhance operational efficiency by providing clear visual feedback.
These sensors are designed with comprehensive electrical protection, including short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. They operate within a voltage range of 10
30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA. The SP2/LN-0E Sensors are also resistant to external light interference, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight.
With approvals from CE and cULus, and compliance with EMC compatibility standards EN 60947-5-2, these sensors are a reliable choice for various industrial applications. The package includes M18 x 1 nuts for easy installation, and the sensors are designed to withstand operating temperatures from -25°C to +70°C without freezing.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- NPN Lon
- Output Function:
- Lon
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
